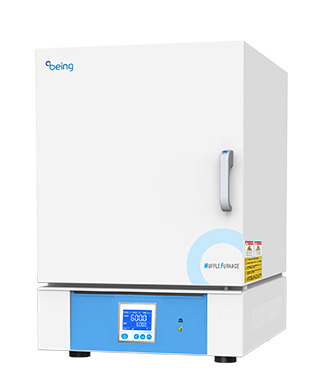

Muffle Furnace
Muffle Furnace
Features
● The structural design and safety meet international electrical safety standards.
● Microcomputer PID controller, easy to operate, accurate and reliable temperature control.
● Programming setting function with 7 periods and 9 steps for each period, which means there are 63 programmable steps in total.
● High quality heating elements has higher aging resistance, corrosion-resistant ceramic fiber furnace with light weight, they’re built with long-life.
● The chimney ensures the combustion is more complete.
● Housing made of sheets of cold-rolled steel finish by powder coated.
● Present start and off function according customer requirement.
● Lightweight door design makes opening and closing door safe and easy.
Safety
● Low noise cooling fan, adjust the external temperature of the furnace body.
● Over-current, over-voltage, overheat and various safety measures to ensure safety.
● The safety switch will automatic shutdown when door open ensures the safety of the operator.
● Ceramic fiber furnace insulation material with good heat insulation effect, low temperature on shell surface.
| Model | BWF-11/02 | BWF-11/07 | BWF-11/12 | BWF-12/02 | BWF-12/07 | BWF-12/12 | |
| Chamber Volume(L) | 2L | 7L | 12L | 2L | 7L | 12L | |
| Temperature | Maximum(℃) | 1100 | 1200 | ||||
| Working(℃) | 1000 | 1100 | |||||
| Preset start and off | √ | √ | |||||
| Programmable Controller | √ | √ | |||||
| Datalogging | USB (option) | ||||||
| Sensor | Type K thermocouple | ||||||
| Insulation material | Alumina ceramic fiber | ||||||
| Heating | Element | Fe-Cr-Al | |||||
| Time(mins) | 35 - 65 | 30 - 52 | |||||
| Interior Dimension (WxDxH)mm | 120×200×80 | 200×300×120 | 300×200×200 | 120×200×80 | 200×300×120 | 300×200×200 | |
| External Dimension (WxDxH)mm | 380×495×584 | 460×650×674 | 490×690×730 | 380×495×584 | 460×650×674 | 490×690×730 | |
| Safety | Chimney | √ | √ | ||||
| Over-current protector | √ | √ | |||||
| Power failure memory | √ | √ | |||||
| Anti-scalding protection | √ | √ | |||||
| N/W(Kg) | 35 | 45 | 67 | 35 | 45 | 67 | |
| Power Consumption (Kw) | 1.5 | 3 | 4 | 1.5 | 3 | 4 | |
| Power Supply | 220V 50/60HZ 1P | ||||||
| Model | BWF-11/02N | BWF-11/07N | BWF-11/12N | BWF-12/02N | BWF-12/07N | BWF-12/12N | |
| Chamber Volume(L) | 2L | 7L | 12L | 2L | 7L | 12L | |
| Temperature | Maximum(℃) | 1100 | 1200 | ||||
| Working(℃) | 1000 | 1100 | |||||
| Preset start and off | √ | ||||||
| Programmable Controller | √ | ||||||
| Datalogging | USB (option) | ||||||
| Sensor | Type K thermocouple | ||||||
| Insulation material | Refractory bricks | ||||||
| Heating | Element | Fe-Cr-Al | |||||
| Time(mins) | 35 - 65 | 30 - 52 | |||||
| Interior Dimension (WxDxH)mm | 120×200 ×80 | 200×300×120 | 300×200×200 | 120×200 ×80 | 200×300×120 | 300×200×200 | |
| External Dimension (WxDxH)mm | 380×495×584 | 460×650×674 | 490×690×730 | 380×495×584 | 460×650×674 | 490×690×730 | |
| Safety | Chimney | √ | √ | ||||
| Over-current protector | √ | √ | |||||
| Power failure memory | √ | √ | |||||
| Anti-scalding protection | √ | √ | |||||
| Power Consumption (Kw) | 2.5 | 4 | 5 | 2.5 | 4 | 5 | |
| Power Supply | 220V 50/60HZ 1P | 380V 50/60HZ 3P | 220V 50/60HZ 1P | 380V 50/60HZ 3P | |||
-
