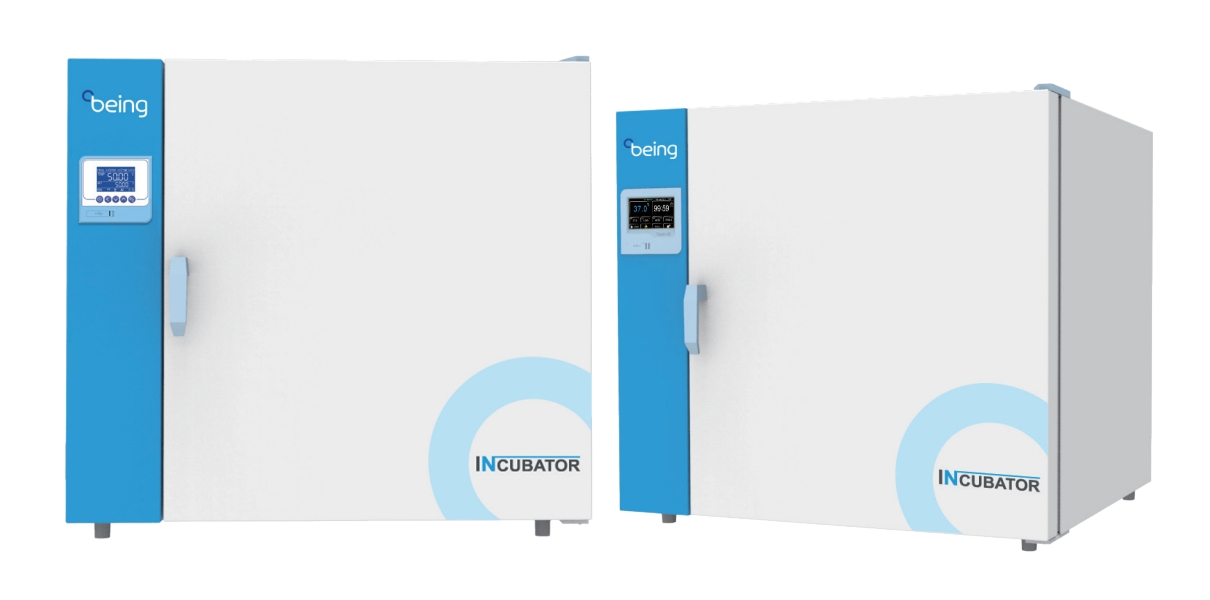

Heating Incubator
Adopting direct heating system, the heating speed is fast and the control precision is high.
Humanized design:
●Adopting direct heating system, the heating speed is fast and the control precision is high.
●PID control technology, high control precision and small temperature fluctuation.
●Available in Chinese and English menus to meet different language needs, with °C / °F conversion.
●The height of the shelf is adjustable to meet different cultivation needs.
●Professional stacking foot design, the machine can be stacked, saving lab space and improving the use efficiency (same specification).
Convenient data processing:
●The touch screen type standard with a USB interface, which can record the change status of the temperature parameters. The LCD screen is option for USB interface.
●It can be equipped with RS232 data interface, which can realize remote control of the machine through software (option).
●RS-232 and USB can be selected one of them.
Safty:
●Protection on instruments: Comply international standard secondary temp limiting alarm system. When the heating is out of control or exceeds the maximum limit temperature, the heating is automatically cut off with sound and light alarm, ensure operating is safe without any accident.
●Protection on key components: Key components are equipped with over-current, over-temperature, overload and other safety protection to prevent accident.
●Protection on samples: When the temperature inside the box is higher or lower than the set temperature, the alarm will start to cut off the heater, with sound and light alarm to remind the operator to protect the sample from normal test without accident.
●Protection on operator: The cabinet and door are specially insulated to make the surface temperature of the cabinet low, ensuring the operator's safety and no accidents.
●Breakdown message provided: When the instrument breakdown, the message will shown on the screen to help operator clearly check.
Technical parameters (Natural Convection)
| Touch Screen | BI-35T | BI-55T | BI-120T | BI-200T |
| LCD controller | BI-35TL | BI-55TL | BI-120TL | BI-200TL |
| Capacity（L） | 34L | 54L | 124L | 222L |
| Temp Range | RT+5 - 80℃ | |||
| Stability | ±0.2℃ | |||
| Uniformity(at 37℃ ) | ±0.8℃ | |||
| Display Resolution | 0.1℃ | |||
| Max number of shelves | 2(5) | 2(6) | 2(10) | 2(16) |
| Max load per shelf | 20Kg | |||
| NW | 44Kg | 53Kg | 79Kg | 108Kg |
| Timing Range | 1 - 5999mins | |||
| Interior Dimension W×D×H(mm) | 320×340×320 | 400×360×415 | 520×480×490 | 650×540×650 |
| Exterior Dimension W×D×H(mm) | 610×520×580 | 690×468×640 | 810×588×755 | 940×658×910 |
| Electrical Requirement | AC220V,50Hz | |||
| Power Consumption | 250W | 300W | 550W | 700W |
Technical parameters (Air Forced)
| Touch Screen | BI-35F | BI-55F | BI-120F | BI-200F | BI-400F |
| LCD controller | BI-35FL | BI-55FL | BI-120FL | BI-200FL | BI-400FL |
| Capacity（L） | 35L | 67L | 146L | 253L | 420L |
| Temp Range | RT+5 - 80℃ | ||||
| Stability | ±0.2℃ | ||||
| Uniformity(at 37℃ ) | ±0.8℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Max number of shelves | 2(5) | 2(9) | 2(12) | 2(16) | 2(23) |
| Max load per shelf | 20Kg | ||||
| NW | 48Kg | 56Kg | 82Kg | 119Kg | 160Kg |
| Timing Range | 1 - 5999mins | ||||
| Interior Dimension W×D×H(mm) | 320×390×320 | 400×395×415 | 520×510×530 | 650×600×650 | 1000×530×800 |
| Exterior Dimension W×D×H(mm) | 610×550×545 | 690×560×640 | 810×685×755 | 940×755×875 | 1285×750×980 |
| Electrical Requirement | AC220V,50Hz | ||||
| Power Consumption | 300W | 350W | 600W | 700W | 1000W |
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
