Bluepard Line

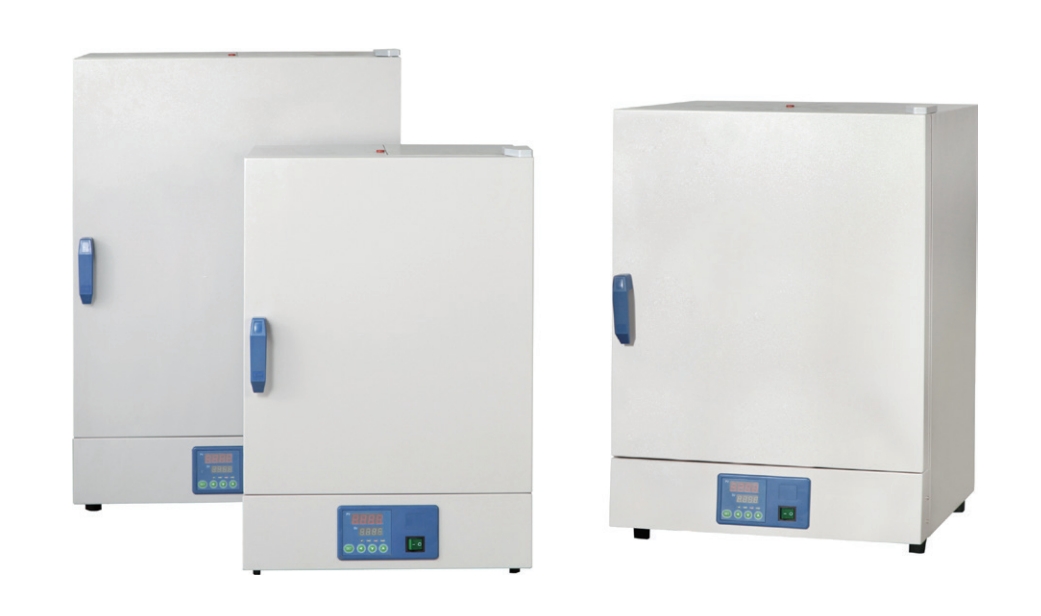

Natural Convection Oven
LED Microprocessor Controller (with timing function)
Provided for desiccation, torrefaction, wax-melting and sterilization in mining industry, laboratories and scientific research institutes.
Features:
●304 stainless steel, mirror polishing processing, easy to clean and maintain.
●Natural convection with low noise.
●PID controller with over temperature alarm and timing function ensures precise and reliable control.
Option:
●Independent over-temperature alarm system ensures experiments running safely.
●RS 485 connector can connect computer to save the data via software.
Options:
●Printer
●Independent temperature-limiting Alarm system
●RS485 connector
●Intelligent programmable temperature controller
●Test hole(φ25mm or 50mm)
| Model | DHG-9031A | DHG-9051A | DHG-9091A | DHG-9141A | DHG-9201A |
| Electrical Requirement | AC220V 50HZ | ||||
| Temperature Range | RT+10 ～ 200℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Temperature Stability | ±0.5℃ | ||||
| Ambient Temperature | +5 ～ 35℃ | ||||
| Power Consumption | 850W | 1000W | 1400W | 2000W | 2200W |
| Chamber Volume | 27L | 54L | 96L | 140L | 200L |
| Interior Dimension (W×D×H)mm | 320×300×355 | 400×330×415 | 450×430×505 | 520×500×575 | 570×560×640 |
| Exterior Dimension (W×D×H)mm | 460×520×660 | 540×550×720 | 590×650×810 | 660×720×880 | 710×780×945 |
| Shelves | 2(pcs) | 3(pcs) | |||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
