Clean Bench BCV
Clean Bench
General information

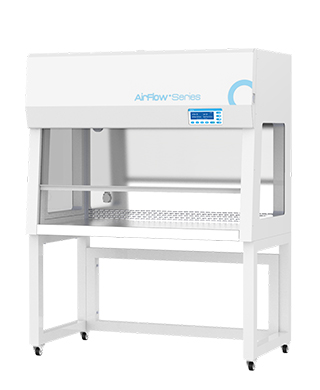

BEING provides high-quality, safe vertical laminar clean benches. BEING’s clean benches suck air from the room or hall space, transfer the air through a HEPA filter using a fan, and then clean the bench area with filtered air.
● Reservation on / off control for fan & UV light
● High quality, quiet fan
● Universal electrical outlet
● An additional pre-filter below work surface helps capture large particles and prolongs HEPA filter life
● Stable laminar air flow, from 0.30m/s to 0.50m/s
● Realtime display air speed, time and the status of HEPA filter
● Cumulative running time of HEPA filter
● Power socket installed inside for ease power access
● Audio and visual alarm for filter failure
● Access password
● Interlocking control between ultraviolet ray light and interior light
Technical Specifications
Spec/Model | BCV-3S1 | BCV-4S1 | BCV-5S1 | BCV-6S1 |
Num. of operator | one people one side | one people one side | two people one side | two people one side |
Laminar Flow | Vertical | |||
Cleanliness | ISO class 5, ISO - 14644-1 | |||
CFU | ≤0.5/Dish*h (φ90mm petri dish) | |||
Air Velocity | 0.30 - 0.50m/s | |||
Noise | ≤62dB | |||
Vibration | ≤3μm | ≤4μm | ≤4μm | ≤4μm |
Illumination | ≥900Lx | |||
Power input | AC220V/50Hz | |||
Peak power | 250VA | 500VA | 500VA | 750VA |
Internal Work Area W x D x H(mm) | 920×620×645 | 1220×620×645 | 1520×620×645 | 1820×620×645 |
External Dimensions W x D x H(mm) | 1060×720×1745 | 1360×720×1745 | 1660×720×1745 | 1960×720×1745 |
