Bluepard Line
Cooling Incubator
LED/LCD Microprocessor Controller (with timing function)
Features
● 304 stainless steel, mirror polishing processing, easy to clean and maintain.
● PID controller with over temperature alarm and timing function ensures precise and reliable control, also guarantee an excellent control by microprocessor and the limited number of setting keys ensures an extremely simple and intuitive operability.
● The inner lamp for observation of the samples is standard supplied.
● 3 fan speed meets all requirements of different experiments.
● Famous brand compressor with refrigerant R134a.
Options
● Independent over-temperature alarm system ensures experiments running safely.
● RS 485 connector can connect computer to save the data via software.
● A side through-hole diameter of 25 mm in order to install one or more temperature sensors inside the chamber.
| Model | LRH-70 LRH-70F | LRH-150 LRH-150F | LRH-250 LRH-250F | LRH-500F | LRH-800F | LRH-1000F | LRH-1500F |
| Temperature Range | 0~60℃ | ||||||
| Display Resolution | 0.1℃ | ||||||
| Temperature Stability | High Temperature ±0.5℃ Low Temperature ±1.0℃ | ||||||
| Temperature Uniformity | ±1.5℃ (@25℃ ) | ±2.5℃ (@25℃ ) | |||||
| Electrical Requirement | 220V 50Hz | ||||||
| Ambient Temperature | +5℃ ~30℃ | ||||||
| Power consumption | 450W | 500W | 600W | 2100W | 2050W | 2150W | 2900W |
| Chamber Volume | 70L | 150L | 248L | 492L | 778L | 1000L | 1500L |
Interior Dimension (W×D×H)mm | 400×350×500 | 503×370×808 | 540×460×1000 | 670×720×1020 | 800×590×1650 | 1050×590×1650 | 1550×590×1650 |
External Dimension (W×D×H)mm | 530×560×1080 | 600×630×1360 | 637×662×1590 | 850×1100×1930 | 1475×890×1780 | 1665×890×2005 | 2110×890×2050 |
| Shelves | 2(pcs) | 3(pcs) | |||||
| Timing Range | 0~5999min | ||||||

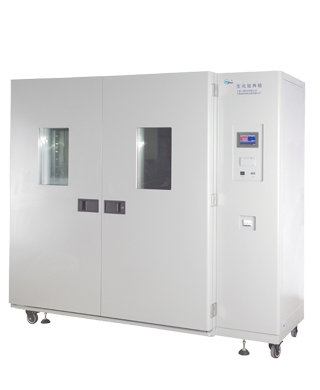

| Remark | "F" model is with LCD display LRH-1000F, LRH-1500F is standard with two doors | ||||||
※ Specification test under non-load condition: ambient temperature is 20℃,and relative humidity is 50%.
-
