Bluepard Line

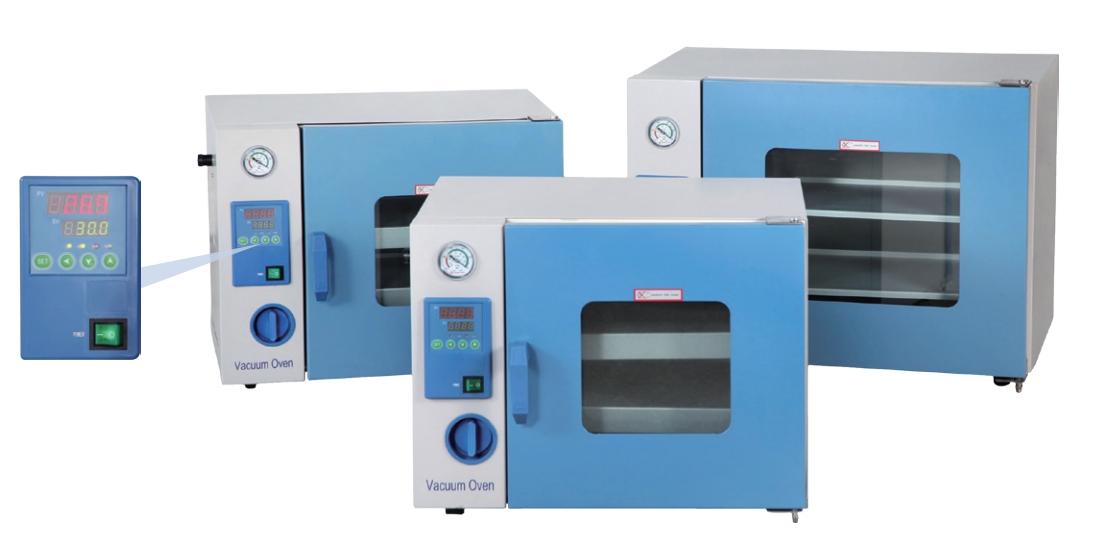

Vacuum Oven
LED Microprocessor Controller (with timing function)
Vacuum oven is designed especially for drying material which is thermosensitive , oxidative, decomposable easily. It can also work with inert gas to dry some compound material.
Features:
●304 stainless steel, mirror polishing processing, easy to clean and maintain.
●PID controller with over temperature alarm and timing function ensures precise and reliable control, also save more than 40% heating time.
●A big dual layer tempered glass on the door provides good observation.
●Door adjustment system with silicon door gasket ensures better vacuity.
Option:
●KF25 Vacuum Port.
●LED lights on the door.
●Inert gas valve.
| Model | DZF-6012 | DZF-6020 DZF-6022 DZF-6024 | DZF-6050 DZF-6053 DZF-6055 DZF-6056 | DZF-6030A DZF-6032 DZF-6034 (Special for chemistry) | DZF-6092 DZF-6094 DZF-6096 | DZF-6123 DZF-6126 | DZF-6213 DZF-6216 | DZF-6030B DZF-6050B DZF-6055B (Special for biology) |
| Electrical Requirement | AC220V 50HZ | |||||||
| Controller | LED display | |||||||
| Power Consumption | 400W | 400W 700W 700W | 1450W | 850W | 870W 1950W 1950W | 1500W 2300W | 1550W 2850W | 300W 650W 650W |
| Temperature Range | RT-10~200℃ | RT-10~65℃ | ||||||
| Display Resolution | 0.1 | |||||||
| Temperature Stability | ±1℃ | |||||||
| Vacuum Degree | 133Pa | |||||||
| Chamber Volume | 10L | 24L | 50L | 30L | 90L | 125L | 216L | 30L/50L |
| Ambient Temperature | +5~40℃ | |||||||
| Interior Dimension (W×D×H)mm | 220×210×220 | 300×300×275 | 415×370×345 | 320×320×300 | 450×450×450 | 500×500×500 | 600×600×600 | 320x320x300 415x370x345 |
| Exterior Dimension (W×D×H)mm | 500×375×410 | 605×490×450 | 730×560×550 | 630×510×490 | 740×610×591 | 790×660×641 | 890×760×741 | 610x510x490 730x560x550 |
| Shelves | 2(pcs) | 1(pcs) 2(pcs) 4(pcs) | 2(pcs) 3(pcs) 5(pcs) 6(pcs) | 1(pcs) 2(pcs) 4(pcs) | 2(pcs) 4(pcs) 6(pcs) | 3(pcs)-Independent temp. control 6(pcs) | 1(pcs) 2(pcs) 5(pcs) | |
| Chamber Material | 304 Stainless steel | 316 SS | 304 Stainless steel | |||||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
