Bluepard Line
Bluepard Line
CO₂ Incubator

CO₂ Incubator

With Imported Infrared CO₂ Sensor

Features:

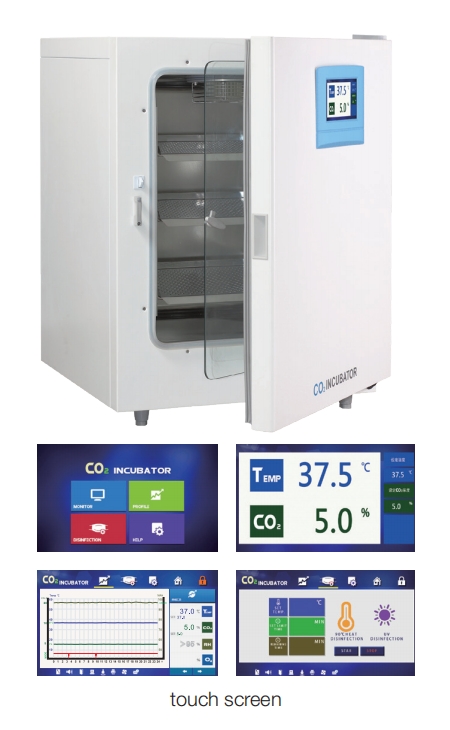

Touch screen controller, 72-hour machine operation record query function to help user tracking abnormal conditions and trace historical operation information.

Faster CO₂ concentration Restoration Speed.

Infrared sensor can keep CO₂ concentration stability and uniformity when door open frequently.

Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning(except water-jacketed type) , and the space between the shelves in the chamber is adjustable.

Microorganism filter at inlet provides 99.99% filtration of bacteria and dust (Ф<0.3μm) and supplies pure CO₂ into the incubator.

Door temperature controller prevents dewfall on glass door of incubator effectively.

Independent audible and visible temperature-limiting alarm system ensures experiments run safely.

Alarm function for temperature difference, CO₂ over concentration and concentration difference, door open time, UV working status.

Auto-controller of fan speed to prevent damage to the samples.

90℃ high temperature and humidity streilization function.(RHP series)

Options:

RS485 Connector: easy to download and save all the data via RS-485 into computer, and identify problems in time.

High effective filter provides filtration of bacteria and dust.

CO₂ pressure releasing valve.

Humidity display system.

Printer(Nested).

Temperature-limiting alarm system.

Specifications
ModelBPN-40RHPBPN-80RHPBPN-150RHPBPN-190RHPBPN-240RHPBPN-60RWPBPN-170RWPBPN-240RWP
Electrical Requirement220V 50Hz
Screen7” Touch screen
Power Consumption350W500W700W750W1000W500W700W1000W
Heating MethodAir-jacketed, PID ControlWater-jacketed, PID Control
Temperature RangeRT+5~55℃
Ambient Temperature+5~30℃
Temperature Stability±0.1℃
CO2 Range0~ 20% V/V
CO2 Control Resolution±0.1%(IR sensor)
CO2 Recovery(Door open 30s,recovery to 5%) ≤ 3min
Temperature Recovery(Door open 30s,recovery to 37℃ ) ≤ 8min
Humidity MethodNatural vaporization ≥ 90%
Chamber Volume40L80L155L190L233L60L170L240L
Interior Dimension (W×D×H)mm400×286×350400×450×500480×530×610520×530×690600×630×670380×290×550530×460×720600×520×780
Exterior Dimension (W×D×H)mm590×440×576590×687×790670×770×880708×710×1030790×840×940534×530×790684×700×960754×760×1020
Shelves2(pcs)3(pcs) 2(pcs)3(pcs)
Sterilization method90°C moist heat disinfection (18hrs)+UV SterilizerUV Sterilizer
Accessory
  • 0₂ Concentration Control Module
    0₂ Concentration Control Module

    Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.

  • Microbial filter
    Microbial filter

    The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.

  • HEPA filter
    HEPA filter

    The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
