Bluepard Line

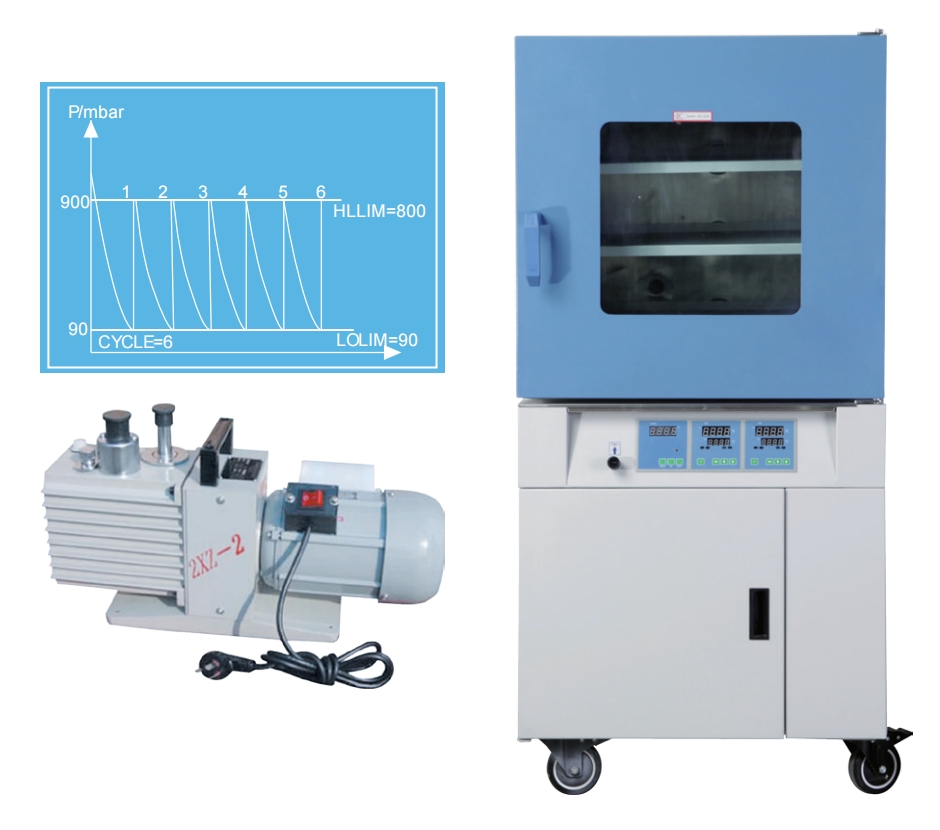

Vacuum Oven(LCD)
Microprocessor controller (with timing function)
Vacuum degree Control:
Vacuum oven adopts the digital technique of simulated engineering to control vacuum degree.
The vacuum degree controlled by full-automatic electromagnetism valve which make the degree control more exact.
Vacuum control rang: 20Pa ~9999Pa
Vacuum display rang: 1Pa ~9999Pa
Vacuum accuracy: 1Pa
Features:
●Programmable vacuum cycle
●LCD vacuum degree window
●Suitable for drying thermo-sensitive material
●Shorter drying time for sample that does not dry easily
●Dual layer tempered glass door for clear observation
●Fully automatic electromagnetism controlled vacuum
●Minimum heating time 50% less than traditional vacuum oven
| Model | BPZ-6933LC | BPZ-6503LC | BPZ-6213LC | BPZ-6123LC | BPZ-6093LC | BPZ-6063LC | BPZ-6033LC |
| Electrical Requirement | AC380V 50HZ | AC220 50HZ | |||||
| Temperature Range | RT+10~200℃ | ||||||
| Display Resolution | 0.1℃ | ||||||
| Temperature Stability | ±1℃ | ||||||
| Vacuum Gauge | Digital Display | ||||||
| Vacuum Degree | 133Pa | ||||||
| Vacuum Sensor | Resistance silicon tube pressure sensor | ||||||
| Vacuum Control Range | 10~105 Pa | ||||||
| Power Consumption | 5600W | 3800W | 2100W | 2050W | 1350W | 1800W | 1200W |
| Chamber Volume | 913L | 431L | 215L | 125L | 90L | 63L | 32L |
| Interior Dimension (W×D×H, mm) | 750×1160×1050 | 630×810×845 | 560×600×640 | 500×500×500 | 450×450×450 | 400×400×400 | 320×320×320 |
| Exterior Dimension (W×D×H, mm) | 1400×1395×2010 | 1000×1040×1855 | 720×820×1750 | 660×640×1400 | 610×590×1350 | 600×570×1390 | 550×490×1240 |
| Shelves | 5pcs (Independent temperature control) | 4 pcs (Independent temperature control) | 3 pcs (Independent temperature control) | 3pcs | 2pcs (Independent temperature control) | 3pcs | 2pcs |
| Chamber Material | 304 Stainless steel (1Cr18Ni9Ti) | ||||||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
