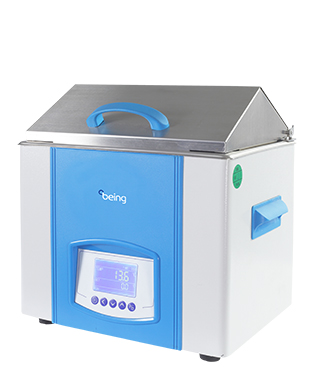

Water Bath
Water Bath
Features
● PID temperature controller, large LCD display screen and interface provides for userfriendly operation.
● Easy to set Adjustable Timer. (1 minute to 5,999 minutes)
● Built-in circulating water pump to ensure uniform upper and lower temperature of bath lotion. (only for BW-22P)
● Maintenance-free operation with easy to clean surface.
● Both heater and bath chamber are made of corrosion-resistant stainless steel.
● No angle in bath chamber, easy to clean.
● The standard stainless-steel bottom plate, helps prevents direct contact by accessories and tubes to heating element and sensors.
● Drain valve makes emptying of bath water fast and easy for cleaning and moving.
Safety
● Preset On/Off function.
● Built-in power interruption protection function, automatic run after power interruption.
● Independent Over-temperature protection meets DIN 12880 International standard requirements.
● Temperature deviation alarm.
● Over current protection alarm.
Option
● Available RS-485 or USB ports for data collection.
Model | BW-5 | BW-12 | BW-22 | BW-22P |
Power requirements | AC220V 50HZ | |||
Power (W) | 500W | 800W | 1000W | |
Temperature range | RT+5 - 100℃ | RT+5 - 80℃ | ||
Temperature fluctuation | ±0.2℃ | |||
Temperature resolution | 0.1℃ | |||
Chamber volume | 5L | 12L | 22L | |
Internal dimension W×D×H(mm) | 280×130×150 | 280×220×150 | 490×300×150 | |
External dimension W×D×H(mm) | 345×200×340 | 345×285×355 | 545×343×355 | |
Timer | 1 - 5999min | |||
Net weight | 5 Kg | 12 Kg | 18 Kg | 19 Kg |
Porous cover(lid) | 2 - hole | 4 - hole | 6 - hole | 6 - hole |
Maximum of Racks
Model/Rack | No.1 Rack | No.2 Rack | No.3 Rack | No.4 Rack | No.5 Rack |
BW-5 | 2 | 2 | 2 | / | / |
BW-12 | 4 | 4 | 4 | 1 | 1 |
BW-22 | 8 | 8 | 8 | 2 | 2 |
BW-22P | 8 | 8 | 8 | 2 | 2 |
