Bluepard Line

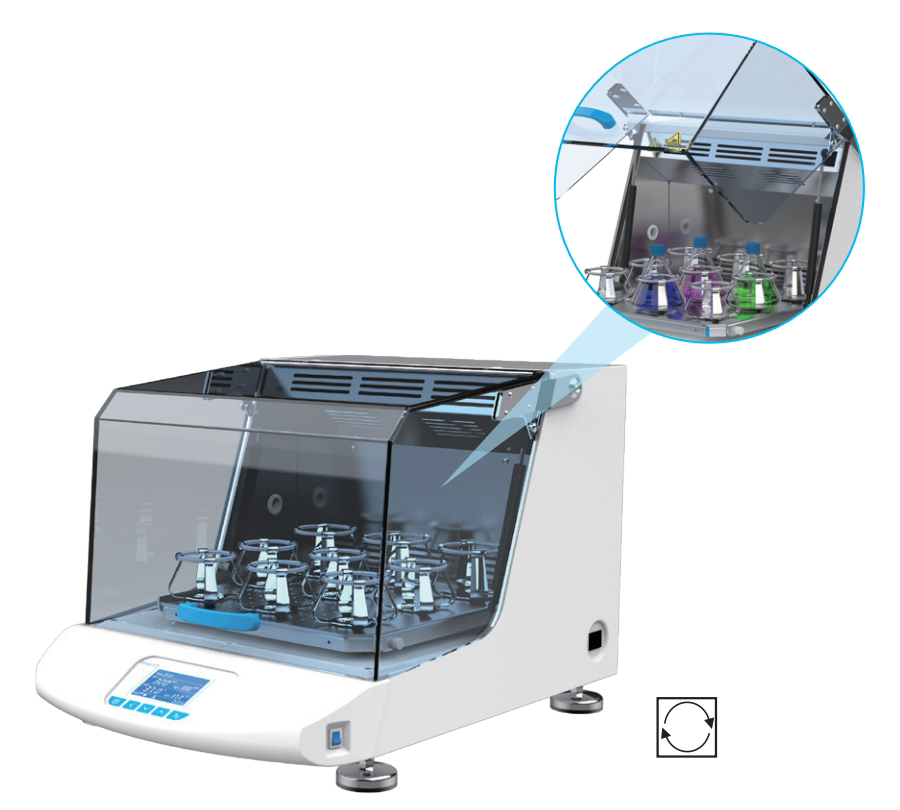

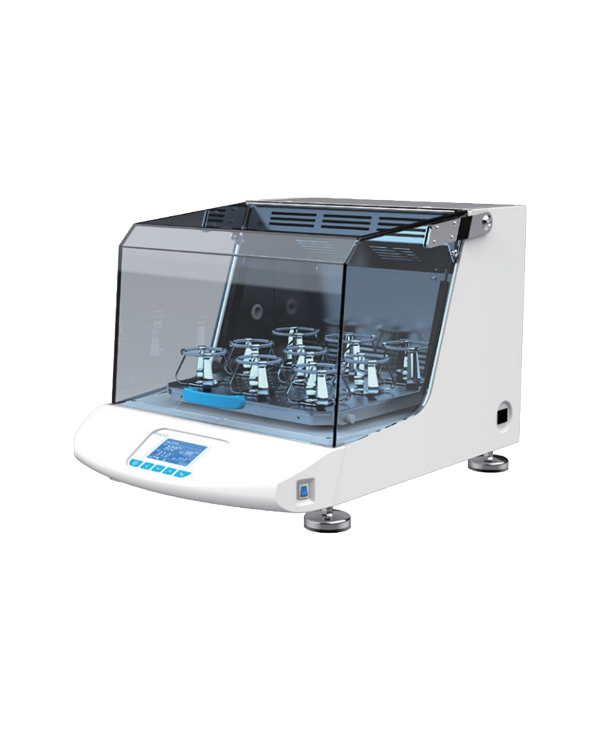

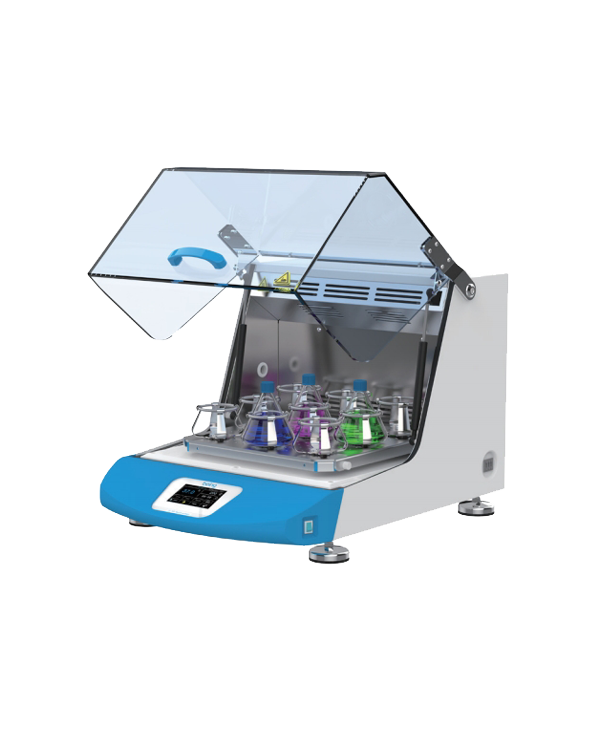

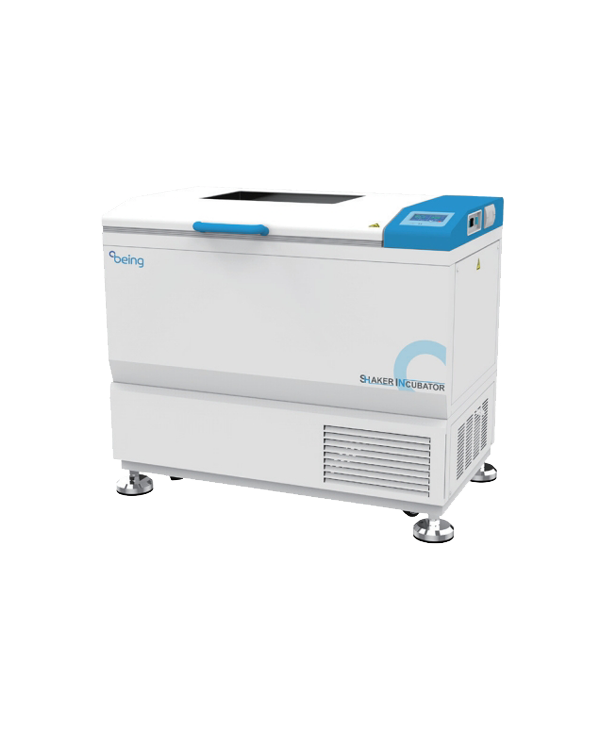

Shaking Incubator
Microprocessor controller (with timing function)
Summary
Widely applicable for researches on bacteria cultivation, fermentation, hybridization, chemical and biochemical reaction, enzymes and tissues research, which have a high requirement on precision of shaking speed and temperature.
Features:
●Large LCD screen to display more data at same time.
●Stainless-steel chamber and platform, easy to clean.
●Big observation windows.
●Microprocessor controller for temperature and shaking speed with timing function.
●Self-check function easy to identify problems.
●Smooth start and stop system prevents liquid spillage.
●Auto-controller of fan speed to prevent damage to the samples.
●Safety door switch, auto pause operation when door is opened.
●R134a refrigerant, imported compressor and fan motor.
●High effective filter provides filtration of bacteria and dust.
●Temperature-limiting alarm system, auto switch off when over-temperature.
●RS485 connector can connect computer record and inspect the parameters and the variations of temperature. (option)
●Maintenance-free DC Brushless motor, easy to clean.
Options:
●Programmable Temperature Controller
●Controller board and printer(Nested)
●Independent temperature-limiting alarm
●RS485 connector and software
| Model | THZ-103B | THZ-100 | THZ-300 | THZ-300C |
| Electrical Requirement | 220V 50Hz | |||
| Shaking Speed Range | 40~250r/min | 40~300r/min | ||
| Amplitude | 20mm | |||
| Temperature Range | RT+5~65℃ | 4~65℃ (Ambient temp-20℃ ) | ||
| Display Resolution | 0.1℃ | |||
| Power Consumption | 450W | 650W | 1000W | 1300W |
| Platform Size | 280×280 | 350×350 | 450×450 | |
| Default Platform | Spring wire racks | |||
| Timing Range | 0~5999min | |||
Platform used for flask clamp and tube holder.Maximum of flask clamp (Monolayer)
| Model | WSZ-20A | WSZ-50A HZQ-50H | WSZ-100B | WSZ-200A | THZ-103B | THZ-100 | THZ-300 THZ-300C | |
| Flask(pc) | 50ml | 16 | 16 | 29 | 49 | 16 | 36 | 49 |
| 100ml | 9 | 12 | 18 | 36 | 9 | 23 | 36 | |
| 250ml | 8 | 8 | 11 | 18 | 8 | 13 | 18 | |
| 500ml | 4 | 4 | 7 | 16 | 4 | 8 | 16 | |
| 1000ml | - | 2 | 4 | 9 | - | 4 | 9 | |
| 2000ml | - | - | 3 | 4 | - | - | 4 | |
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
