Bluepard Line

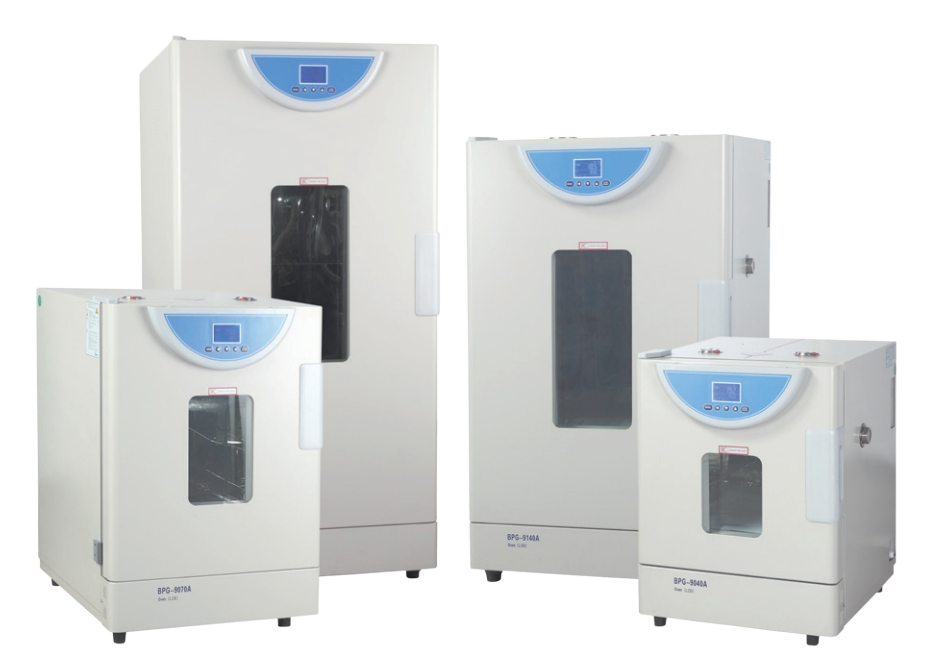

Drying Oven
LCD Programmable controller (with timing function)
Features:
●Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
●Auto-controller of fan speed to prevent damage to the samples.
●Large LCD screen to display more data at same time.
●Self-check function easy to identify problems.
●There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature.
●Programmable controller: 7 periods 63 steps, 0~5999min for each periods, fan speed 0 to 100% adjustable.
●Independent audible and visible temperature-limiting alarm system ensures experiments run safely.
●RS485 connector can connect computer and printer to record the parameters and the variations of temperature.(Option)
Options:
●Printer
●RS485 connector
| Model | BPG-9040A | BPG-9070A | BPG-9140A | BPG-9240A | BPG-9420A |
| Electrical Requirement | 220V 50HZ | ||||
| Controller | Programmable LCD display | ||||
| Power Consumption | 850W | 1100W | 1550W | 2050W | 3000W |
| Temperature Range | RT+10~250℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Temperature Stability | ±1℃ | ||||
| Temperature Uniformity | ±2.5%（@100℃） | ||||
| Shelves | 2(PCS) | 3(PCS) | |||
| Interior Dimension(W×D×H)mm | 350×300×400 | 400×320×550 | 500×380×750 | 600×450×900 | 1000×510×800 |
| Exterior Dimension(W×D×H)mm | 505×655×600 | 550×660×750 | 655×715×980 | 755×785×1130 | 1140×850×1080 |
| Chamber Volume | 40L | 80L | 150L | 250L | 400L |
| Timing Range | 0~5999min | ||||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
