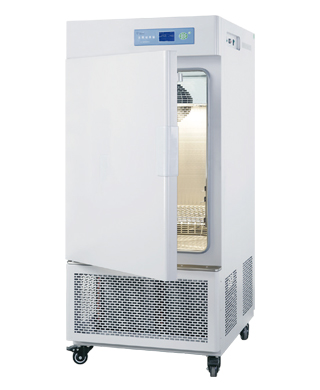

Plant Growth Chamber

Plant Growth Chamber

Microprocessor controller (with timing function)

Features

● Microprocessor controller for temperature and humidity and light intensity, 30 programs

● Large LCD screen

● Simulate changing temperature and light in day/night

● Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.

● R134a refrigerant, two imported compressors, continuous running time

● Independent temperature-limiting alarm system ensures experiments run safely.(option)

● RS485 connector is option which can connect computer to record the parameters and the variations of temperature.(option)


Specifications
Parameter\Model

MGC-350BP-2

MGC-450BP-2

MGC-350HP-2

MGC-450HP-2

MGC-800BP-2

MGC-1000BP-2

MGC-800HP-2

MGC-1000HP-2

MGC-1500BP-2MGC-1500HP-2
Chamber Volume300L/450L800L/1000L1500L
Temperature RangeWithout Lighting: 0~50℃ , With lighting: 10~50℃
Display Resolution0.1℃
Temperature Stability±1℃
Temperature Uniformity±1.5℃±2℃±2℃
Humidity Range
50~90%RH-50~90%RH-50~90%RH
Humidity Accuracy
±5~7%RH-±5~7%RH-±5~7%RH
Lighting Intensity

0~20000LX

0~25000LX

Six -grade adjustable

0~30000LX

0~35000LX

Six -grade adjustable

0~40000LX

Six -grade adjustable

Lighting TypeThree surface illuminationShelves illumination(two Shelves)Shelves illumination(two Shelves)
Programmer Function

Temperature, humidity, light intensity, can be set separately, and 30 programmers

Time range is 1-99 hours 59mins for each programmer

Power Consumption1700W/2000W1700W/2050W2700W/2800W2800W/2900W4300W4500W
Electrical Requirement220V 50HZ
Ambient TemperatureRT+5~30℃
Interior Dimension(W×D×H) mm520×550×1140/700×550×1140800×590×1650/1050×590×16501550×590×1650
ExteriorDimension(W×D×H)mm830×850×1850/950×850×18501410×890×1950/1475×890×19501570×1475×2050
Shelves3(PCS)
