Bluepard Line

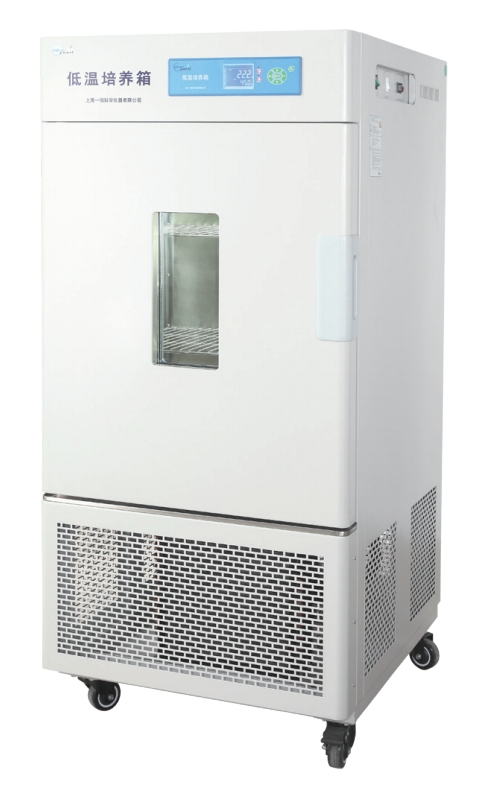

Cooling Incubator
Microprocessor control
Summary:
Serve for preserve culture medium, serum, medicine as well as microorganism training and environmental testing etc.
Features:
●Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
●Latest PID controller
●R134a refrigerant, imported compressor
●Independent temperature-limiting alarm system ensures experiments run safely.(Option)
●Printer connector and RS485 connector are options which can connect printer and computer to record the parameters and the variations of temperature.(Option)
●There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
Options:
●Printer
●Independent temperature-limiting Alarm system
●RS485 connector
| Model | LRH-50CL LRH-50CA LRH-50CB | LRH-100CL LRH-100CA LRH-100CB | LRH-150CL LRH-150CA LRH-150CB | LRH-250CL LRH-250CA LRH-250CB | LRH-500CL LRH-500CA LRH-500CB |
| Temperature Range | CL: -10℃ ~65℃ CA: -20℃ ~65℃ CB: -40℃ ~65℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Temperature Stability | High Temperature ±0.5℃ Low Temperature ±1.0℃ | ||||
| Electrical Requirement | 220V 50Hz | CL/CA: 220V 50Hz CB: 380V 50Hz | |||
| Ambient Temperature | +5℃ ~35℃ | ||||
| Power consumption | 1100W 1100W 2800W | 1100W 1200W 4100W | 1300W 1300W 5100W | 1500W 1600W 6100W | 2250W 2550W 7100W |
| Interior Dimension(W×D×H)mm | 400×300×420 400×300×420 400×380×450 | 500×400×600 500×400×600 500×400×600 | 550×405×670 550×405×670 550×430×670 | 600×500×830 600×500×830 600×600×700 | 670×720×1020 670×720×1020 800×700×900 |
| Exterior Dimension(W×D×H)mm | 660×720×930 660×720×930 650×1040×1650 | 650×770×1320 650×770×1320 700×1040×1750 | 690×800×1410 690×800×1410 750×1040×1810 | 740×900×1580 740×900×1580 800×1160×1850 | 850×1100×1930 850×1100×1930 1000×1210×1980 |
| Shelves | 2(pcs) | 3(pcs) | |||
| Timing Range | 0~9999min | ||||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
