Rotary Evaporator
Rotary Evaporator

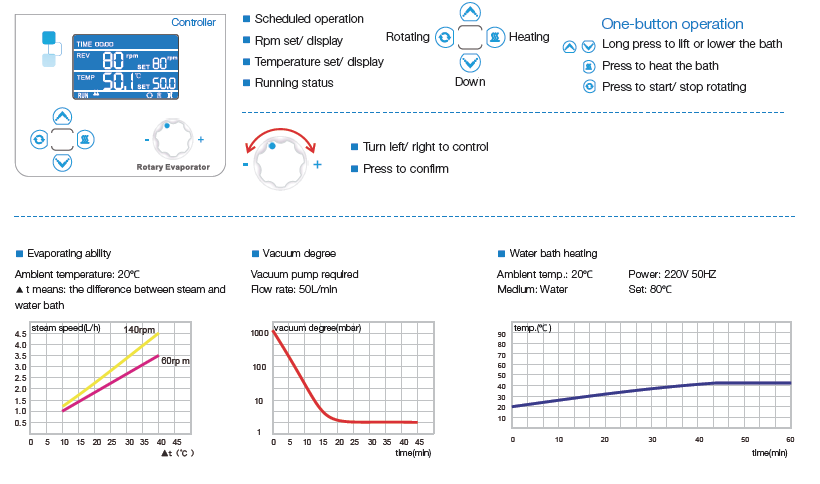

Features
Specifications
Technical parameters
| Model | RV-5A | RV-10A | RV-20A | RV-50A | |
| Size | 5L | 10L | 20L | 50L | |
| Performance | Rotation speed (rpm) | 20 - 140 | 20 - 130 | 20 - 130 | 20 - 110 |
| Evaporate rate (Max. L/h) | 2 | 3.5 | 4 | 9 | |
| Ultimate degree(mbar) | 8mbar | ||||
| Temperature rate(℃ ) | Water: RT+5 - 99℃ , Oil: RT+5 - 180℃ (option) | ||||
| Temperature stability (℃ ) | ±1 | ||||
| Function | Controller | PID controller | |||
| Safety | 1.Over current protection 2. Over temp. protection 3. Power interruption alarm 4. Anti-dry protection | ||||
| Display | LCD screen | ||||
| Lift mode | Moto lift | ||||
| Power (W) | 2300 | 3300 | 4300 | 5300 | |
| Condensation area(M2) | 0.28 | 0.49 | 1.29 | 1.75 | |
| Capability of rotatory bottle | 5L | 10L | 20L | 50L | |
| Capability of collecting bottle | 3L | 5L | 10L | 20L | |
| Sealing gasket | PTFE and Teflon Coating | ||||
| Lifting distance(mm) | 150 | 170 | 170 | 260 | |
| Bracket | No | Aluminum alloy bracket | |||
| Water Bath | Dimension(mm) | Diameter 280×175 | Diameter 365×225 | Diameter 445×250 | Diameter 552×320 |
| Material | SS304 with PTFE coated | ||||
| Interface size | Condenser barb size(mm) | 14 | 18 | ||
Exterior dimension (including glasswares) W×D×H(mm） | 860×410×1120 | 1100×540×2060 | 1200×570×2060 | 1300×610×2150 | |
| Power | 220V 50HZ | ||||
| Ambient temperature | 10 - 35℃ | ||||
