Bluepard Line

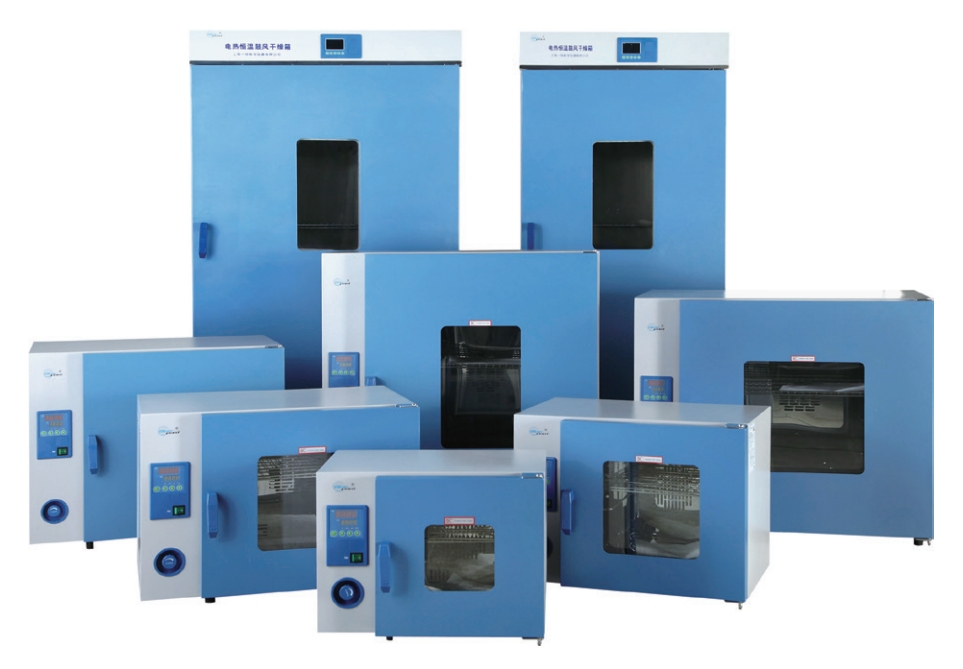

Forced Air Oven
LED Microprocessor Controller (with timing function)
Provided for desiccation, torrefaction, wax-melting and sterilization in mining industry, laboratories and scientific research institutes.
Features:
●304 stainless steel, mirror polishing processing, easy to clean and maintain.
●PID controller with over temperature alarm and timing function ensures precise and reliable control.
●Air circulation system with specific air flow channel ensures a good temperature uniformity performance.
●Silicon door gasket with long lifetime, and easy to change.
●A damper adjustment in the front ensures the gas convection enough in working chamber.
Option:
●Independent over-temperature alarm system ensures experiments running safely.
●RS 485 connector can connect computer to save the data via software.
| Model | DHG-9013A | DHG-9030A | DHG-9053A | DHG-9070A | DHG-9140A | DHG-9240A | DHG-9420A | DHG-9620A | DHG-9920A |
| Electrical Requirement | 220V 50Hz | 380V 50Hz | |||||||
| Temperature Range | RT+10℃ ~250℃ | ||||||||
| Display Resolution | 0.1℃ | ||||||||
| Temperature Stability | ±1℃ | ||||||||
| Temperature uniformity | ±3%（at 100℃） | ||||||||
| Ambient Temperature | +5~40℃ | ||||||||
| Power Consumption | 800W | 850W | 1100W | 1550W | 2050W | 2450W | 3100W | 4000W | 5200W |
| Chamber Volume | 16L | 30L | 50L | 80L | 136L | 220L | 420L | 620L | 1000L |
| Interior Dimension (W×D×H)mm | 250×260×250 | 340×320×320 | 420x395x350 | 450×400×450 | 550×450×550 | 600×500×750 | 640×585×1355 | 840×600×1355 | 800×700×1590 |
| Exterior Dimension (W×D×H)mm | 530×370×420 | 620×440×490 | 720x530x520 | 740×530×630 | 840×580×730 | 880×630×930 | 780×730×1780 | 980×800×1880 | 1050×880×2060 |
| Shelves | 2(pcs) | 2(pcs) | 2(pcs) | 3(pcs) | 4(pcs) | ||||
| Timing Range | 0~9999min | ||||||||
| Model | DHG-9015A DHG-9035A | DHG-9055A | DHG-9075A | DHG-9145A | DHG-9245A | DHG-9425A | DHG-9625A |
| Electrical Requirements | 220V 50Hz | 380V 50Hz | |||||
| Temperature Range | RT+10~300℃ | ||||||
| Display Resolution | 0.1℃ | ||||||
| Temperature Stability | ±1℃ | ||||||
| Temperature uniformity | ±3%（at 100℃） | ||||||
| Ambient Temperature | +5~40℃ | ||||||
| Power Consumption | 850W | 1100W | 1550W | 2050W | 2450W | 3100W | 4000W |
| Chamber Volume | 16L/30L | 50L | 80L | 136L | 220L | 420L | 620L |
| Internal Dimension (W×D×H)mm | 250×260×250 340×320×320 | 420×395×350 | 450×400×450 | 550×450×550 | 600×500×750 | 640×585×1355 | 840×600×1355 |
| External Dimension (W×D×H)mm | 530×370×420 620×440×490 | 720×530×520 | 740×530×630 | 840×580×730 | 880×630×930 | 780×730×1780 | 980×800×1880 |
| Shelves | 2(pcs) | 2(pcs) | 2(pcs) | 2(pcs) | 2(pcs) | 3(pcs) | 4(pcs) |
| Timing Range | 0~9999min | ||||||
-
