Being Line

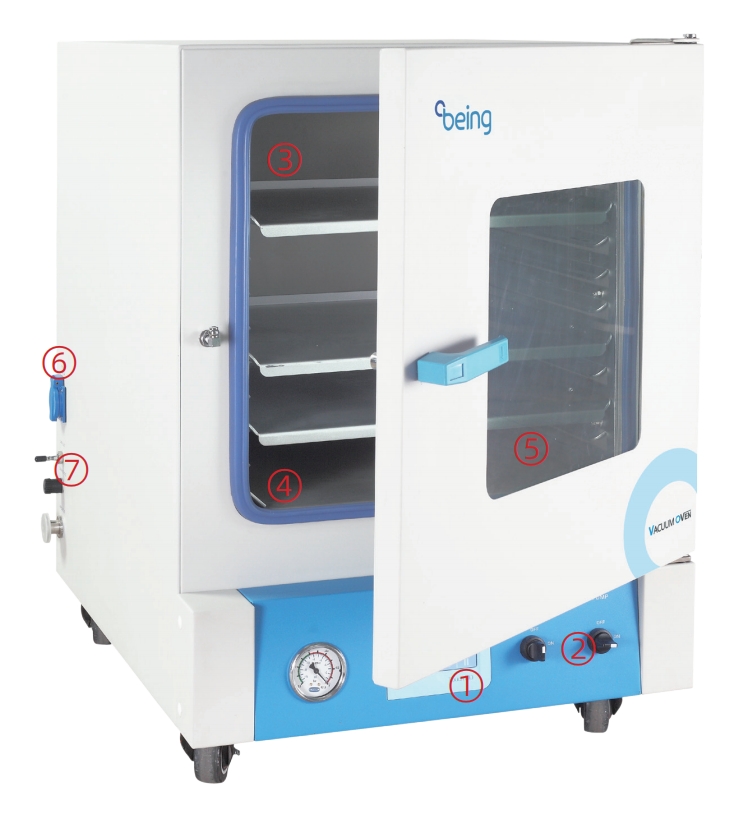

Vacuum Oven
With reservation and timing functions, there is no need to wait, which effectively improves the efficiency of the experiment.
Humanized design:
●With reservation and timing functions, there is no need to wait, which effectively improves the efficiency of the experiment.
●Available in Chinese and English menus to meet different language needs, with °C / °F conversion.
●The machine above 90L has moving casters for flexible and convenient movement.
●The door is closed and elastically adjustable, and the integrated molded silicone rubber door seal ring ensures the vacuum inside the box.
Safty:
●Protection on instruments: Comply international standard secondary temp limiting alarm system, when the heating is out of control or exceeds the maximum limit temperature, the heating is automatically cut off with sound and light alarm, ensure operating is safe without any accident.
●Protection on key components: Key components are equipped with over-current, over-temperature, overload and other safety protection to prevent accident.
●Protection on samples: When the temperature inside the box is higher or lower than the set temperature, the alarm will start to cut off the heater, with sound and light alarm to remind the operator to protect the sample from normal test without accident.
●Protection on operato: The cabinet and door are specially insulated to make the surface temperature of the cabinet low, ensuring the operator's safety and no accidents.
●Breakdown message provided: When the instrument breakdown, the message will shown on the screen to help operator clearly check.
Convenient data processing:
●The touch screen type standard with a USB interface, which can record the change status of the temperature parameters.
●The LCD screen is option for USB interface.
●It can be equipped with RS232 data interface, which can realize remote control of the machine through software (option).
●RS-232 and USB can be selected one of them.
| Touch Screen | BV-20 | BV-50 | BV-90 | BV-120 | BV-210 |
| LCD controller | BV-20L | BV-50L | BV-90L | BV-120L | BV-210L |
| Capacity（L） | 24L | 51L | 91L | 125L | 216L |
| Temp Range | RT+10℃ - 200℃ | ||||
| Temperature Accuracy | ±1℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Max degree of vacuum | 99Pa | ||||
| Standard Max number of shelves | 2（3） | 2（5） | 2（6） | 2（10） | 2（13） |
| Max load per shelf | 20Kg | ||||
| Interior Material | 304 stainless steel | ||||
| Interior Dimension W×D×H(mm) | 300×300×275 | 415×370×345 | 450×450×450 | 500×500×500 | 600×600×600 |
| Exterior Dimension W×D×H(mm) | 445×505×590 | 580×594×670 | 610×721×774 | 660×824×774 | 760×874×924 |
| NW | 60Kg | 95Kg | 145Kg | 175Kg | 245Kg |
| Inert gas air inlet | standard | ||||
| Electrical Requirement | AC220V/50Hz | ||||
| Power Consumption | 700W | 1400W | 2000W | 2400W | 2800W |
※ The outer dimensions do not include hinges, handles, gauges, wires, etc., and the internal dimensions do not include the duct section.
※ All test data are tested in a 25℃ environment.
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
