Bluepard Line

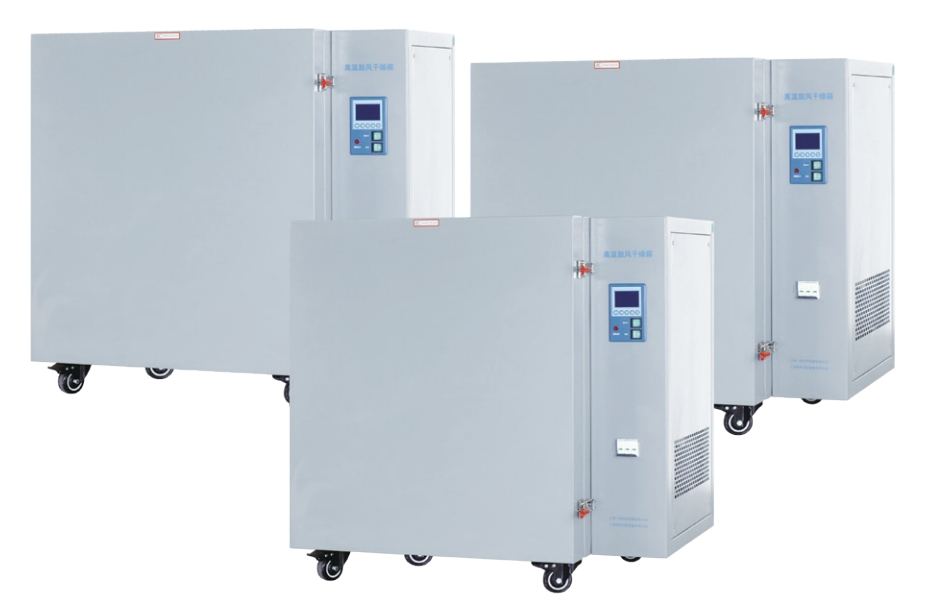

High Temperature Drying Oven
LCD Programmable controller (with timing function)
Provided for desiccation, torrefaction, wax-melting and sterilization in mining enterprises, laboratories and scientific research institutes.
Features:
●304 stainless steel, mirror polishing processing, semicircular arcs at corners easy to clean and maintain. The space between the shelves in the chamber is adjustable.
●PID controller with over temperature alarm and timing function ensures precise and reliable control.
●Ceramic fiber door seal, which can run at high temperature for a long time and has a long service life.
●Programmable controller: 7 periods 63 steps, 0 ~5999mins for each period, can preset boot and shutdown time, adjustable circulating fan.
●Independent over-temperature alarm system ensures experiments running safely
Options:
●Micro printer
●RS485 connector
| Model | BPG-9050AH BPG-9050BH | BPG-9100AH BPG-9100BH | BPG-9200AH BPG-9200BH | BPG-9760AH BPG-9760BH |
| Electrical Requirements | AC380V 50HZ | |||
| Temperature Range | AH series：RT+20℃ 400℃ BH series：RT+20℃ 500℃ | |||
| Display Resolution | 0.1℃ | |||
| Temperature Stability | ±0.5℃ | |||
| Ambient Temperature | +5~40℃ | |||
| Power Consumption | 3250W 4050W | 4050W 4900W | 4900W 6050W | 8500W 8500W |
| Chamber Volume | 50L | 100L | 220L | 760L |
| Internal Dimension (W×D×H)mm | 350×350×400 | 450×450×450 | 600×600×600 | 980×1000×780 |
| External Dimension (W×D×H)mm | 890×700×920 | 990×790×990 | 1140×950×1140 | 1324×1263×1770 |
| Shelves | 2(pcs) | |||
| Timing Range | 0~5999min | |||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
