Rotary Evaporator

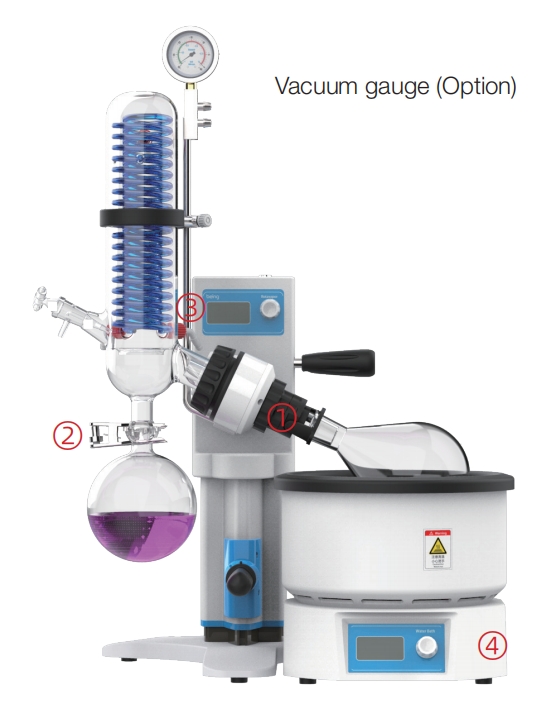

Vacuum gauge (Option)
Rotary Evaporator:
Rotary evaporators (also known as “Rotovaps”) are mainly used for distillations/separation applications often used for medicinal chemistry, pharmaceutical, chromatography, and petrochemical fields. In summary the system works by increasing the rate of evaporation of the solvent by
●Reducing the pressure to lower the solvent boiling point
●Rotating the sample to increase the effective surface area
●Heating the solution
●Then the evaporated solvent then condenses in a cooled glass condenser.
BEING Rotary Evaporator Features:
●Simple design for one handed operation manually or automatically.

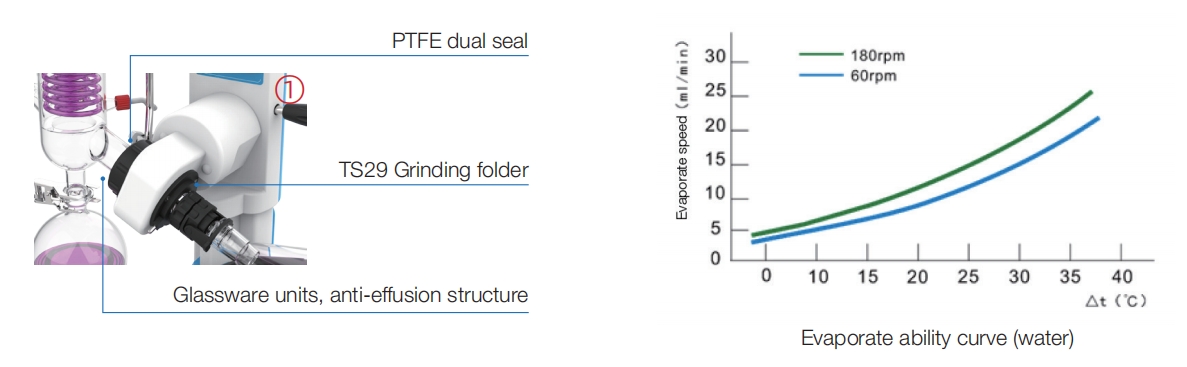

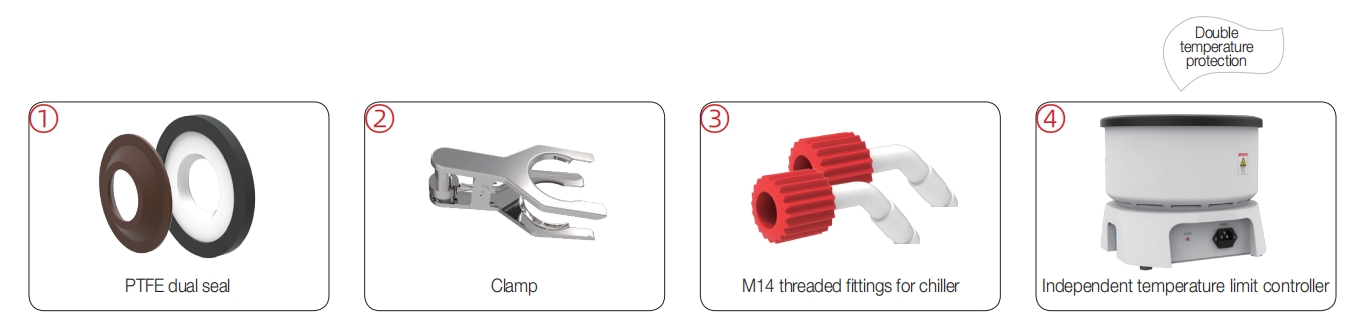

●A unique PTFE sealing system provides exceptional thermostability, minimizes corrosion, and helps to ensure day in day out headache free operation.
●Our Bath offers a dual heating mode for water and oil with overheat protection.
●PID controller offers easy input of parameters and large LCD display for easy viewing.
●Vacuum regulator available.

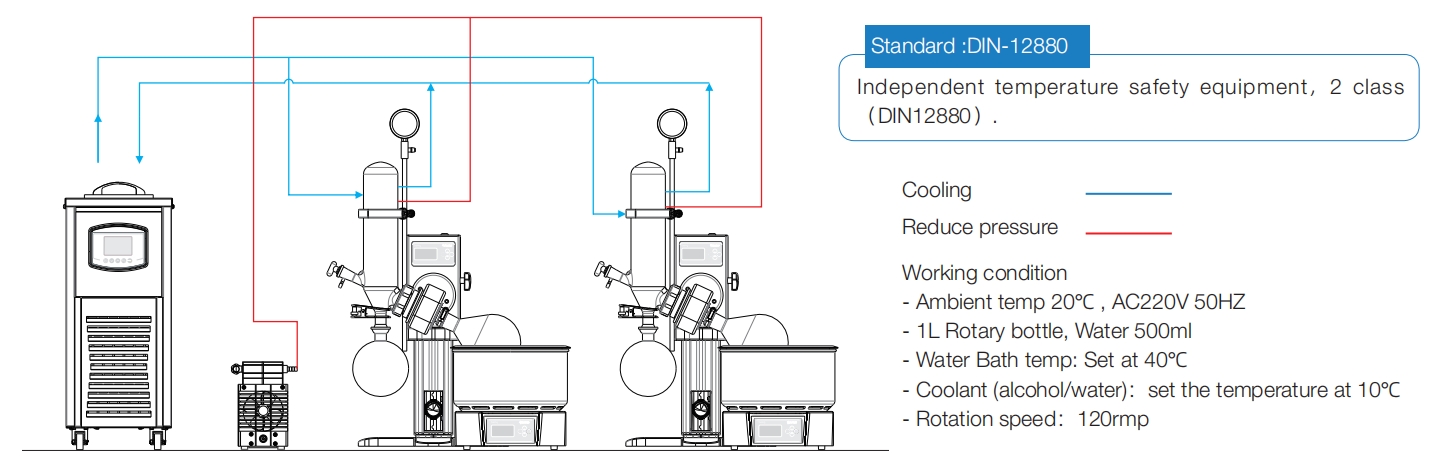

High efficiency can be cycle used for two Rotary Evaporators
| Model | RV-21M | RV-21A | RV-31A |
| Rotation speed | 20 - 300rpm | ||
| Water bath temperature range | Water: RT+5 - 99℃ , Oil: RT+5 - 180℃ (Option) | ||
| Evaporating speed | 22ml/min | ||
| Ultimate vacuum | 8mbar | ||
| Speed setting | LCD display with knob | ||
| Lifting mode | Manual | automatic | |
| Motor function | N / A | DC brushless motor | |
| Main motor DC brushless | DC brushless motor | ||
| Condenser | Condensate Area 0.15m2 , 1L Rotary Bottle, 1L Collecting Bottle, TS29 / 38 Bottle Clamp | ||
| Rotary flask | 1L | 1L | 3L |
| Vacuum seal | PTFE | ||
| Interior wather bath size | φ230mm x130mm | ||
| Water bath material | SS304 with PTFE coated | ||
| Heating power | 1000W | ||
| Temperature range | 5 - 35℃ | ||
| Electrical input | 220V 50/60Hz | ||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
