Chest Type Shaker Incubator
Feature extension(option)
Application
Floor standing Shaker incubator combines incubator and shaker functions together, it uses new outlook design with big touch screen,. Adopt the latest technology of motor driven system, large torque, stable work, low noise and fast heat dissipation and long lifetime. It is widely used Cell culture, fermentation, biochemistry, enzyme research experiment or medium production experiment. Especially suitable for medium production, it solves the user’s problem by advanced design and high precise manufacturing art craft.
Product features:

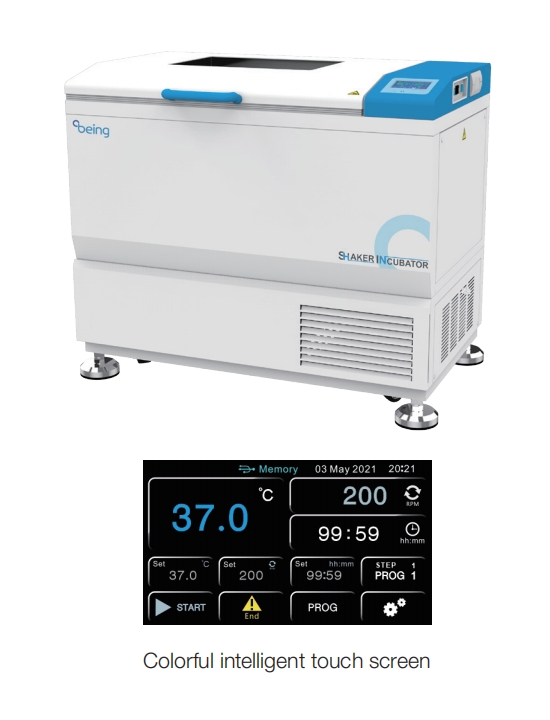

Colorful intelligent touch screen control
●Adopt 4.3 inches touch screen , intelligent touch screen control, parameters real time display, operation easily.
●Temp, rotation speed and time etc parameters fast setting.
Humanization design
●Combine incubator, shaker functions together with small space, huge capacity.
●Colorful touch screen controller, menu operation interface, multi data display at one screen, easily to observe and operate.
●Silent running.
●Fluorine-free design, environmental friendly.
●Big transparent big view windows, platform and chamber are made of stainless steel, anti-corrosion and easy to clean.
Quality guaranty
●User’s set parameters can be stored automatically when power off suddenly, and it resume last program settings when power on.
●PID microcomputer control temp. and shake frequency with timer.
●Compressor and cycle fan etc key components are reliable suppliers, environmental non-free refrigerants.
Uninterrupted performance guaranty
●Brushless DC motor, large start torque, wide speed adjustment, free maintenance.
Three-eccentric axis balance drive
●Three-eccentric axis balance drive ensures all samples in the shaker platform movements at the same rotation frequency. Durable structure guarantees the shaker incubator can work properly no matter full load or high speed working.
Convenient data process

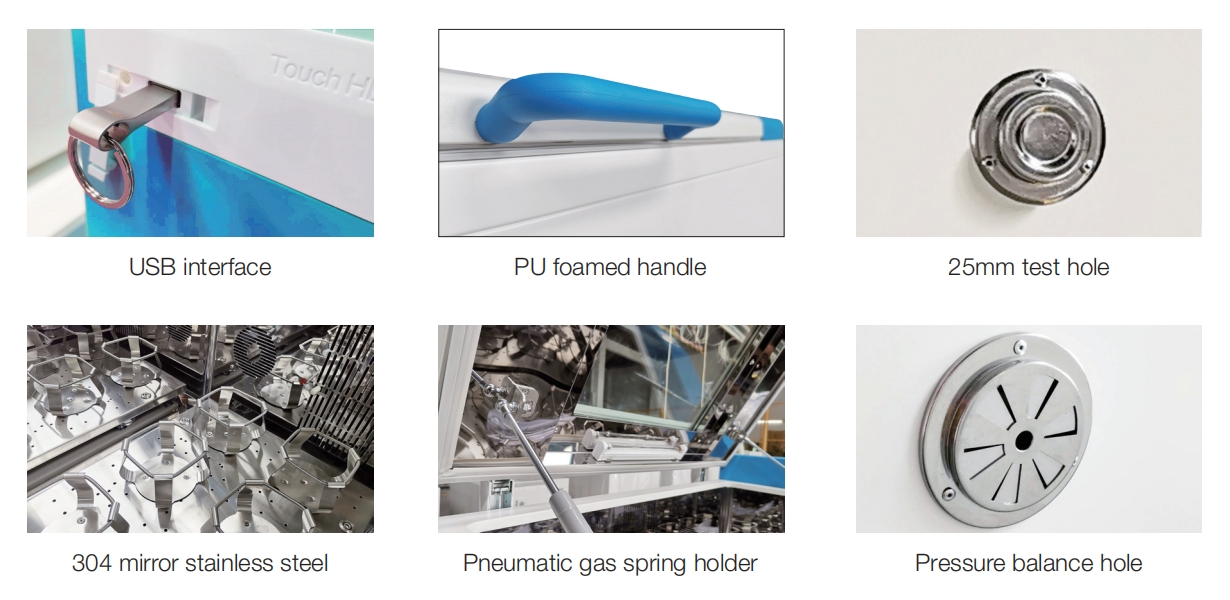

●Equip with USB as options, record temp. parameter changes (option)
●Equip with RS232 data interface, through software to remote control machine performance (option)
●Above two options can be selected only one.
Sterilization system
●The ultraviolet lamp can sterilize the chamber regularly.
Safety
●Protection on instruments: Comply international standard secondary temp. limiter alarm system, alert the operator with sound and light alarms, ensure operator is safe without any accident.
●Protection on key components: Key components have over current, over temp., over load etc safety protection, it can prevent instruments accidents without precautions.
●Protection on samples: Working chamber temperature higher or lower the set temp., alarm starter cut down the heater, alert the operator with sound and light alarms.
●Protection on operator: Cabinet and door is special designed for insulation, low heat of cabinet body, ensure operator use instrument without burnt.
●Breakdown message provided: When the instrument breakdown, the breakdown messages show on the screen to help operator easily check.
Multi-segment programmable control
●Multi-segment temp., speed, time program at the same time. It has normal mode or programmable mode for running. Preset parameter and work data can be shown at the same time. It simplified complicated culture requirements and realize auto control and run.
Feature extension(option)
●CO2 concentration monitor and control.
●Lighting control.
●Humidity monitor and control.
Chest Type Shaker Incubator
| Model | BSI-21 | BSI-31 | BSI-21C | BSI-31C |
| Power supplies | AC220V 50HZ | |||
| Speed range | 40 - 300 rpm | |||
| Amplitude | 26mm | |||
| Control temp. range | RT+5 - 80℃ | 4 - 80℃ | ||
| Temp. resolution | 0.1℃ | |||
| Timer range | 1 - 99h59min | |||
| Rated power | 1050W | 1300W | ||
| Platforme size (mm) | 750×460 | 920×500 | 750×460 | 920×500 |
| Overall size W×D×H (mm) | 1060×680×910 | 1200×730×930 | 1060×680×910 | 1200×730×930 |
| Standard configuration | 250ml×28 | 250ml×45 | 250ml×28 | 250ml×45 |
※ With "C" means the model with refrigeration function
Max. flask clamps can be placed (single layer)
| Model | BSI-21 / BSI-21C | BSI-31 / BSI-31C | |
| Flask (pcs) | 50 ml | 82 | 116 |
| 100 ml | 50 | 66 | |
| 250 ml | 28 | 45 | |
| 500 ml | 23 | 28 | |
| 1000 ml | 15 | 18 | |
| 2000 ml | 8 | 13 | |
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
