Bluepard Line

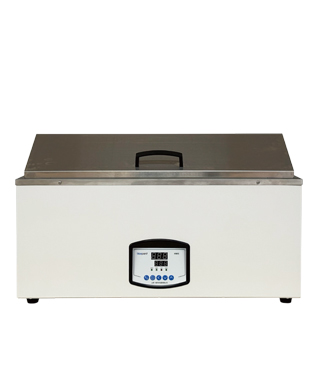

Circulating Bath, Water Bath
Microprocessor controller (with timing function)
Summary
● Provided for precise and constant temperature and auxiliary heating in colleges industrial and mining enterprises and scientific research departments.
Features
● Microprocessor control with timing function.
● Digital display.
● Audible and visible alarm for over temperature.
Options
● Intelligent programmable temperature controller
● RS485 connector
| Water Bath | Water Bath (all stainless steel) | Circulating Bath (with electromagnetic-pump) | Water Bath (three holes) | |
| Model | CU-420 CU-600 | DK-8AD DK-8AX DK-8AXX | DK-8AB DKB-600B | DK-8D |
| Electrical Requirement | 220V 50HZ | |||
| Power Consumption | 500W 1000W | 600W 800W 1000W | 1000W | 750W |
| Temperature Range | RT+5~100℃ | RT+5~70℃ | RT+5~99℃ | |
| Temperature Stability | ±0.5℃ | ±0.3℃ | ||
| Display Resolution | 0.1℃ | |||
| Chamber volume | 15.8L 28.8L | 15.8L 21.6L 28.8L | 22L 30L | 2.1L×3 |
Interior Dimension (W×D×H, mm） | 330×300×160 600×300×160 | 330×300×160 450×300×160 600×300×160 | 500×300×150 600×300×190 | 162×149×151 |
Exterior Dimension (W×D×H, mm） | 570×350×260 750×350×300 | 460×340×190 610×340×260 760×340×280 | 660×340×200 770×370×280 | 505×245×350 |
| Timing Range | 1~9999min | |||
-
