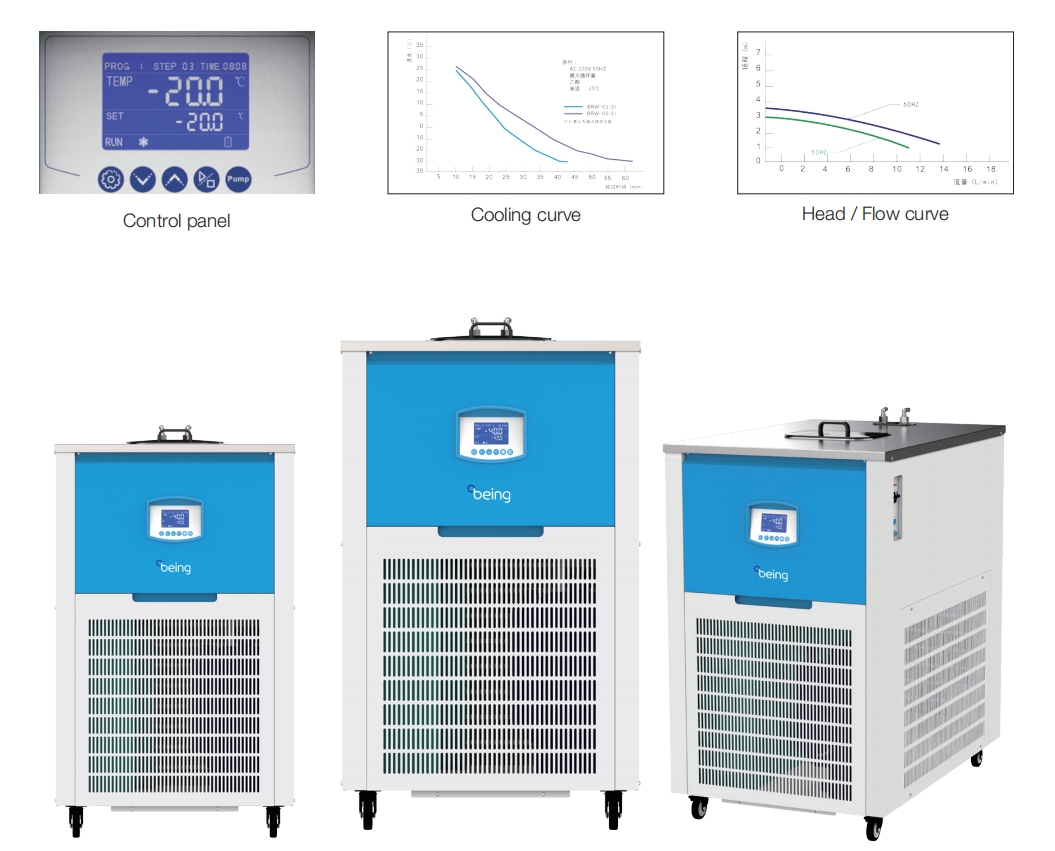

Being Line
Recirculating Chiller
Available RS-485 or USB ports for data collection.
Temperature control, incubation, material testing, corrosion testing, cell culture, tissue research, rotary evaporatororbital agitation at variable speeds to affect the growth of cell cultures.
Features:
●P.I.D temperature controller provides accurate and reliable temperature control.
●Large LCD display screen and interface provides for user-friendly operation.
●Preset On/Off function.
●Independent circulating pump switch for easy starting/stopping the cycle.
●Easy to set Adjustable Timer. (1 minute to 5,999 minutes)
●Maintenance-free operation with easy to clean surface.
●Both heater and bath chamber are made of corrosion-resistant stainless steel.
●No angle in bath chamber, easy to clean.
●Uniquely designed heating method can up to 80 °C .(BR-H series)
●Programming setting function with 7 periods and 9 steps for each period, which means. there are 63 programmable steps in total. (BR-H series)
Safety:
●Temperature deviation alarm.
●Over current protection.
●Independent Over-temperature protection meets DIN 12880 International standard requirements.
●Liquid level display window, through which you can intuitively observe the liquid level in the tank.
Option:
●Available RS-485 or USB ports for data collection.
| Product Name | Cooling recirculating chiller | ||||
| Mode | BR-03 | BR-05 | BR-10 | BR-20 | BR-50 |
| Storage tank maximum capacity (L) | 5 | 8 | 15.5 | 30 | 62 |
| Temperature range | -20 - 20℃ | ||||
| Temperature accuracy | ±2℃ | ||||
| Cooling capacity at 10°C (W) | 530 | 600 | 1500 | 2500 | 4000 |
| Refrigerant | R404A | R410A | |||
| Security features | Delay, leakage, overcurrent, overvoltage | ||||
| Total power (W) | 550 | 600 | 1300 | 1600 | 2400 |
| Power requirements | AC220V/ 50HZ | ||||
| Pump power | 30 | 60 | 550 | ||
| Pump flow max. (L / min) | 6 | 17 | 30 | ||
| Maximum head (m) | 9 | 15 | 25 | ||
| Inlet/Outlet pipe diameter (mm) | φ10 | φ12 | |||
| Weight | 32 | 41 | 60 | 76 | 126 |
| Liquid storage | 3.5 | 5.2 | 13 | 25 | 52 |
| Noise level | ≤45 | ≤55 | ≤65 | ≤75 | |
| Dimensions W×D×H(mm) (include caster) | 210×410×511 | 310×445×570 | 400×500×739 | 450×600×821 | 560×845×850 |
| Product Name | Cooling / Heating recirculating chiller | ||||
| Mode | BR-03H | BR-05H | BR-10H | BR-20H | BR-50H |
| Storage tank maximum capacity (L) | 5 | 8 | 15.5 | 30 | 62 |
| Temperature range | -20 - 80℃ | ||||
| Temperature accuracy | ±0.5℃ | ||||
| Cooling capacity at 10°C (W) | 530 | 600 | 1500 | 2500 | 4000 |
| Refrigerant | R404A | R410A | |||
| Security features | Delay, leakage, overcurrent, overvoltage | ||||
| Total power (W) | 1100 | 1350 | 2500 | 3000 | 4300 |
| Power requirements | AC220V/ 50HZ | ||||
| Pump power | 30 | 60 | 550 | ||
| Pump flow max. (L / min) | 6 | 17 | 30 | ||
| Maximum head (m) | 9 | 15 | 25 | ||
| Inlet/Outlet pipe diameter (mm) | φ10 | φ12 | |||
| Weight | 32 | 41 | 60 | 76 | 126 |
| Liquid storage | 3.5 | 5.2 | 13 | 25 | 52 |
| Noise level | ≤45 | ≤55 | ≤65 | ≤75 | |
| Dimensions W×D×H(mm) (include caster) | 210×410×511 | 310×445×570 | 400×500×739 | 450×600×821 | 560×845×850 |
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
