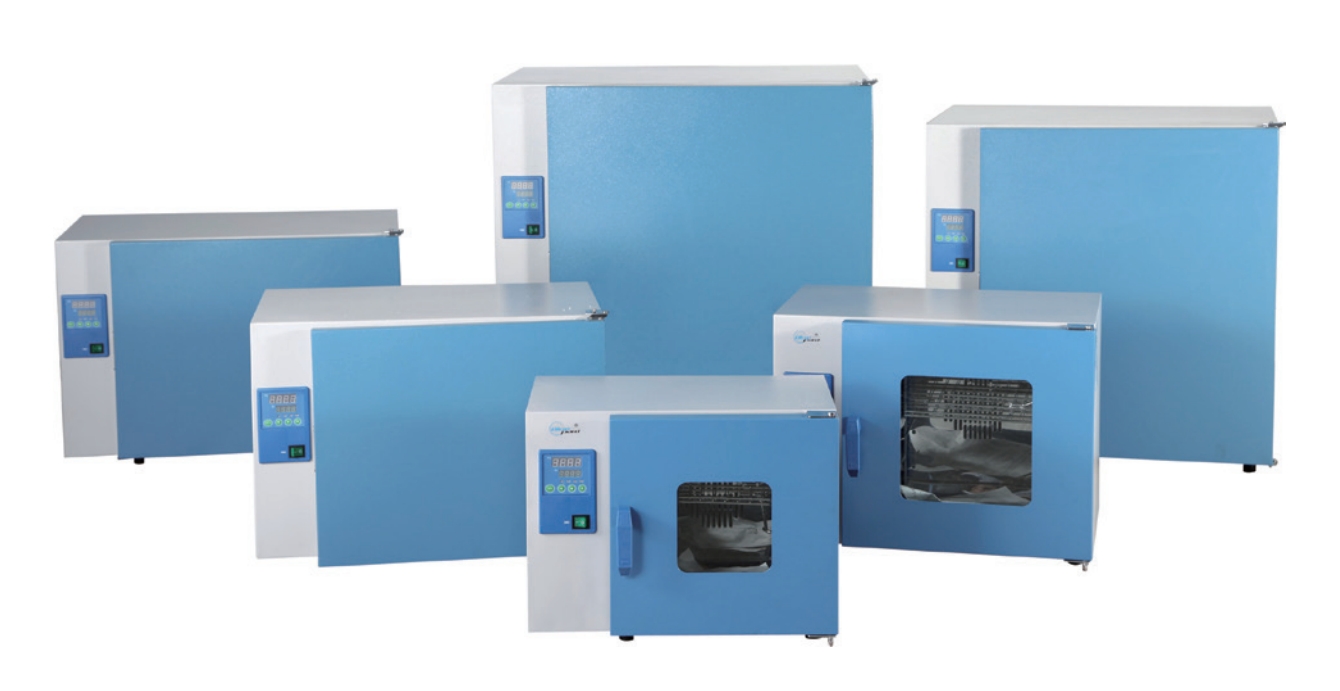

Bluepard Line
Heating Incubator
Microprocessor Controller (with timing function)
Summary
Provided as a necessary equipment for scientific research to colleges as well as biological, agricultural and scientific research departments for storage of mould and biology cultivation.
Features:
●Microprocessor controller (with timing function)
●With inner glass door for easy observation.
●Polished stainless-steel chamber.
●Independent temperature-limiting alarm system ensures experiments run safely.(Option)
●Printer connector and RS485 connector are options which can connect printer and computer to record the parameters and the variations of temperature.(Option)
Options:
●Printer
●Independent temperature-limiting Alarm system
●RS485 connector
●UV Sterilizer
| Model | DHP-9012 DHP-9012B | DHP-9032 DHP-9032B | DHP-9052 DHP-9052B | DHP-9082 DHP-9082B | DHP-9162 DHP-9162B | DHP-9272 DHP-9272B | DHP-9402 DHP-9602 DHP-9902 |
| Electrical Requirement | 220V 50Hz | ||||||
| Temperature Range | RT+5~65℃ | ||||||
| Display Resolution | 0.1℃ /±0.5℃ | ||||||
| Ambient Temperature | +5~35℃ | ||||||
| Temperature Uniformity | ±1.5℃ (at 37℃ ) | ±2.0(at 37℃ ) | |||||
| Power consumption | 200W | 200W | 300W | 400W | 600W | 750W | 1100W/1400W/2200W |
| Chanber Volume | 16L | 35L | 50L | 80L | 160L | 270L | 420L/620L/1000L |
| Interior Dimension (W×D×H)mm | 250×260×250 | 340×320×320 | 415×360×355 | 500×400×400 | 500×500×650 | 600×600×750 | 640×585×1355 840×600×1355 890×740×1590 |
| Exterior Dimension (W×D×H)mm | 530×480×420 | 620×490×490 | 690×500×500 | 780×530×560 | 790×630×810 | 890×740×910 | 780×750×188 980×800×1880 1050×880×2060 |
| Shelves(pcs) | 2 | 3/4/4 | |||||
| Timing Range | 0~5999min | ||||||
| Remark | LCD display is marked with an “B”; model DHP-9012(B) with observation window and without inner glass door | ||||||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
