Bluepard Line

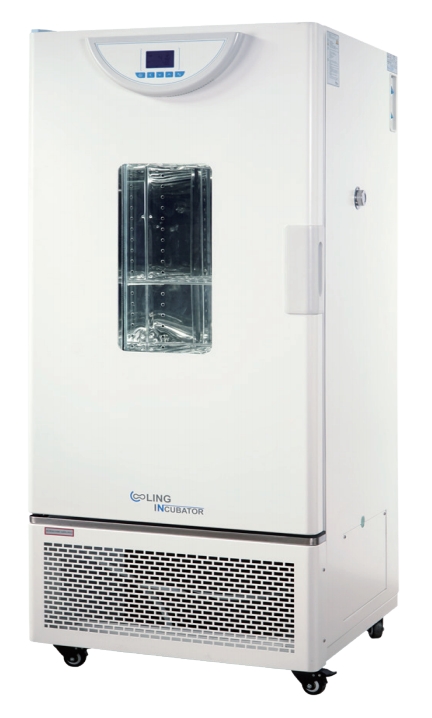

Cooling Incubator
LCD Programmable controller (with timing function)
Features:
●Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
●Latest PID LCD Programmable controller: 7 periods 63 steps, 0 to 5999mins for each periods, fan speed 0 to 100% adjustable.
●Independent temperature-limiting alarm system ensures experiments run safely.
●There is a 25mm instruction connection hole on the left side of the chamber for easy testing operation and temperature measurement.
●Using environmentally friendly R134a refrigerant,fast cooling speed,saving energy and protecting environment.Auto-controller of fan speed to prevent damage to the samples.
●Shaker can be put inside BEING incubator to function as shaking incubator.
●Printer connector and RS485 connector are options which can connect printer and computer to record the parameters and the variations of temperature.(Option)
Options:
●Printer
●USB data collect
●BOD socket
●UV Sterilizer
●RS485 connector
| Model | BPC-70F | BPC-150F | BPC-250F | BPC-500F |
| Controller | LCD Programmable controller | |||
| Temperature Range | -5~70℃ | |||
| Display Resolution | 0.1℃ | |||
| Temperature Stability | High Temperature ±0.3℃ Low Temperature ±0.5℃ | |||
| Temperature Uniformity | ±1.5℃ (at 25℃) | |||
| Electrical Requirement | 220V 50Hz | |||
| Ambient Temperature | +5~35℃ | |||
| Power consumption | 650W | 850W | 1300W | 2250W |
| Chamber Volume | 70L | 150L | 250L | 495L |
| Interior Dimension(W×D×H)mm | 400×440×500 | 500×460×800 | 520×550×1050 | 670×725×1020 |
| Shelves | 2(pcs) | 3(pcs) | ||
| Timing Range | 0~5999min | |||
Using an oxidative error 0₂ concentration sensor, the product has a good linear relationship, a long service life, and can provide precise and stable 0₂ concentration control; The concentration control range of 0₂ is 1-90%, which can meet both high oxygen culture and low oxygen culture, as well as microaerophilic culture.
The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3um, effectively filtering bacteria and dust particles in CO2 gas.
The box is equipped with a HEPA filter as standard, which can effectively filter out bacteria and dust particles in the air inside the box, keeping the incubator in a clean state at all times
