Bluepard Line

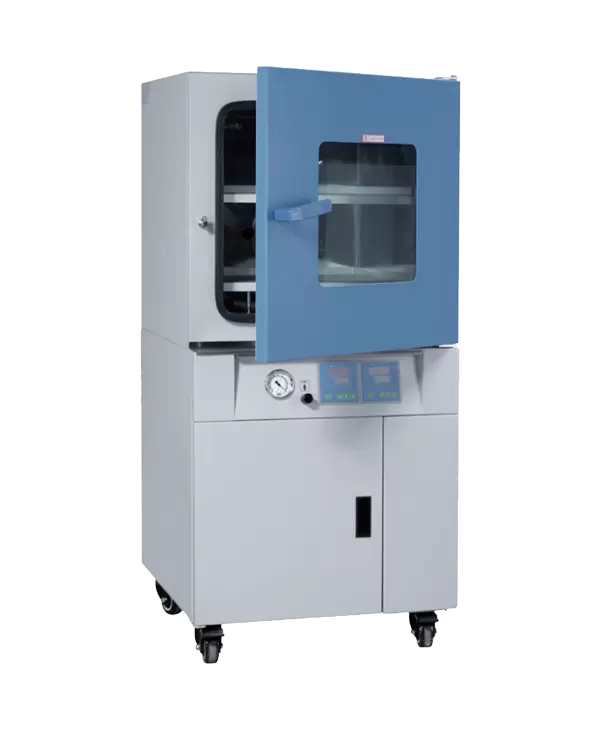

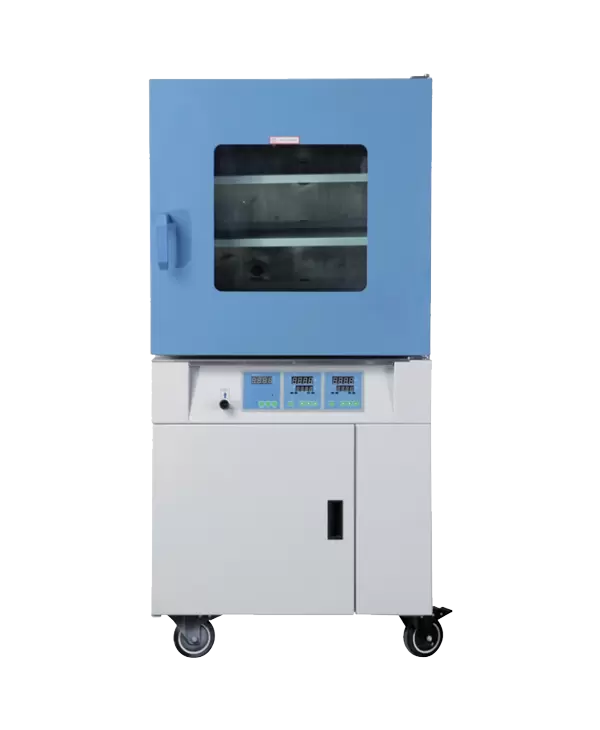

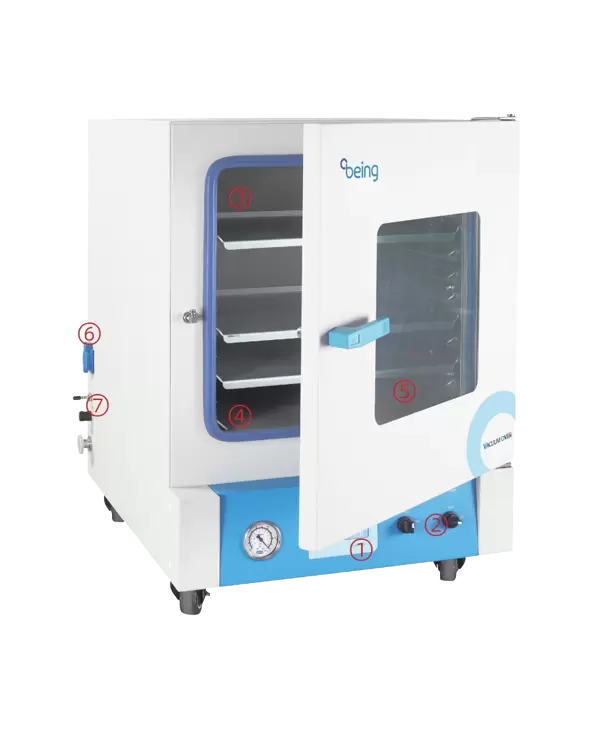

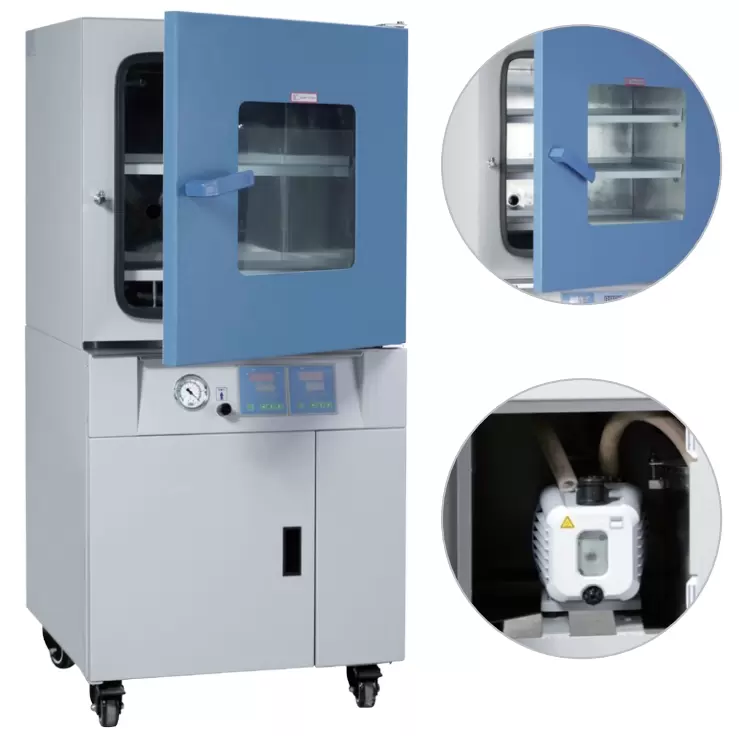

Vacuum Oven
Microprocessor controller (with timing function)
Vacuum oven is designed especially for drying of material which is thermo-sensitive or decompounds and oxidative easily. It can be filled with inert gases, which is especially for a rapid drying of some compound material.
Features:
●Microprocessor controller.
●Dual layer tempered glass door for clear observation.
●Minimum heating time 50% less than traditional vacuum oven.
●Interior chamber made from stainless steel with a mirror polished finish making for easy cleaning.
●Standard with vacuum pump.
●Direct heating and control by shelves: Each shelf has a separate temperature sensor, can be independently displayed and controlled temperature in setting, monitoring and timing, more accurate and stable(except model DZF-6216A & DZF-6094A).
Options:
●LED lamp
●Oil mist filter
●Inert gas valve
●Intelligent programmable temperature controller(LCD)
| Model | DZF-6930 | DZF-6500 | DZF-6210 DZF-6216A | DZF-6090 DZF-6094A |
| Electrical Requirement | AC380V 50HZ | AC380V 50HZ | AC220V 50HZ | AC220V 50HZ |
| Controller | LED display | |||
| Power Consumption | 5800W | 3800W | 2100W/ 3400W | 1350W/ 2400W |
| Temperature Range | RT+10 ～ 200℃ | |||
| Display Resolution | 0.1 | |||
| Temperature Stability | ±1℃ | |||
| Vacuum Degree | 133Pa | |||
| Ambient Temperature | +5~40℃ | |||
| Chamber Volume | 913L | 431L | 215L | 90L |
| Interior Dimension (W×D×H) mm | 750×1160×1050 | 630×810×845 | 560×600×640 | 450×450×450 |
| Exterior Dimension (W×D×H) mm | 1400×1395×2010 | 1000×1040×1855 | 720×820×1750 | 610×590×1350 |
| Shelves | 5pcs (Independent temp. control) | 4pcs (Independent temp. control) | 3pcs (Independent temp. control) 6pcs | 2pcs (Independent temp. control) 4pcs |
| Chamber Material | 304 Stainless steel | |||
