Bluepard Line

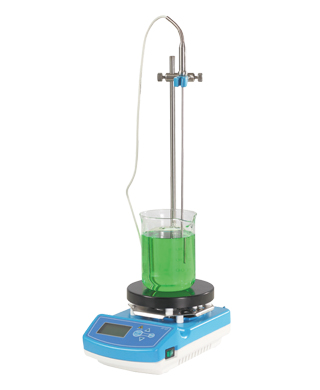

Magnetic Stirrer
LCD Microprocessor Controller (with timing function)
Features
● Large LCD screen to display more data at same time.
● External temperature sensor for liquid, temperature range from ambient temperature to 200℃ .
● Free-step speed adjustment.
● Die-cast Aluminum alloy external chamber.
● Aluminum alloy working plate.
● Over-temp alarm system, auto switch off when 470℃ .
● Caution indication light when plate temperature reach 50℃ .
Differences between A/B series
● Magnetic Stirrer IT-A Series include external temperature sensor which can measure liquid’s temperature directly. Temperature range is from Ambient +5℃ to 200℃ .
● Magnetic Stirrer IT-B Series BMS-09B and BMS-07B are able to reach highest temperature as 320℃ .
| Model | IT-07A3 | IT-09A5 | IT-09A12 | IT-07B3 | IT-09B5 | IT-09B15 | IT-09C10 | IT-09C15 |
| Stirring capacity (H2O) | 3L | 5L | 12L | 3L | 5L | 15 | 10 | 15 |
| Liquid temp range | RT+5℃ ~200℃ | / | / | |||||
| Working plate temp range | / | ambient+5℃ ~320℃ | ||||||
| Speed rang(rpm) | 100~1600 (Optional 2000) | |||||||
| Temperature accuracy | ±1% | ±15℃ | / | |||||
| Plate dimension(mm) | 130×130 | 180×180 | 180×180 | 130×130 | 180×180 | 180×180 | 180×180 | 180×180 |
Exterior dimension (W×H×D)mm | 155×250×110 | 210×330×130 | 210×330×130 | 155×250×110 | 210×330×130 | 210×330×130 | 210×330×130 | 210×330×130 |
| POWER(AC Hz) | 220V/50 | |||||||
| Heating power (Max. W) | 400 | 600 | 700 | 400 | 600 | 700 | - | - |
| Input power (Max. W) | 500 | 650 | 750 | 500 | 650 | 750 | 50 | 50 |
| Weight(KG) | 4 | 5 | 5 | 3.5 | 4.5 | 4.5 | 4.0 | 4.0 |
| Model | IT-08A3 | IT-08B3 | IT-08C5 |
| Stirring capacity (H2O) | 3L | 5L | |
| Speed rang(rpm) | 100~1600 (Optional 2000) | ||
| Power | 600W | 50W | |
| Liquid temp range | RT+5 ～ 200℃ | — | — |
| Working plate temp range | — | RT+5 ～ 320℃ | — |
| Temperature accuracy | ±1℃ | ±1℃ | — |
| Plate dimension(mm) | Φ145 | ||
| Exterior dimension (W×H×D)mm | 155×120×250 | ||
| Weight(KG) | 4.0 | 3.5 | |
-
